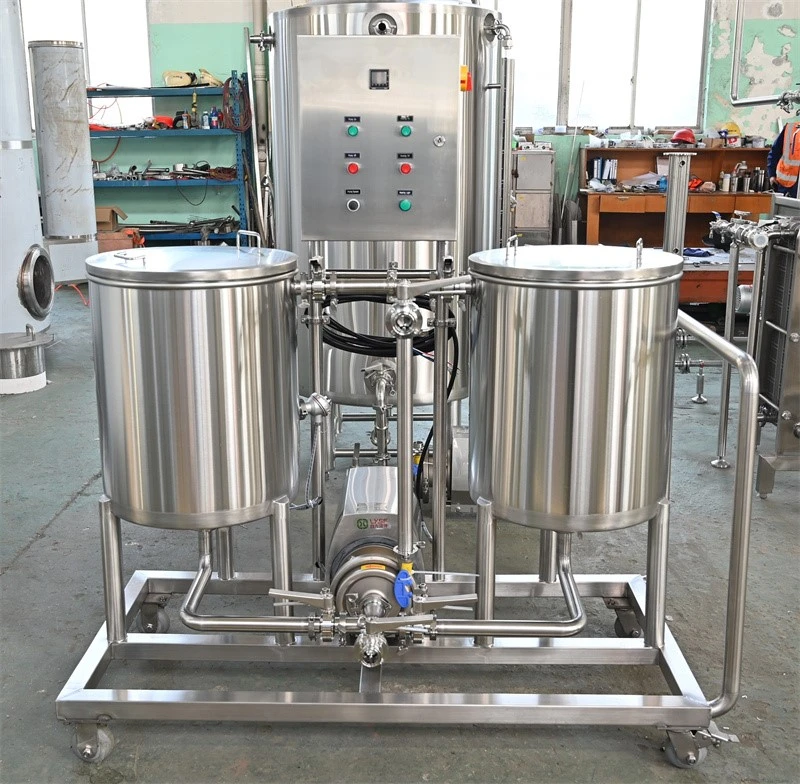

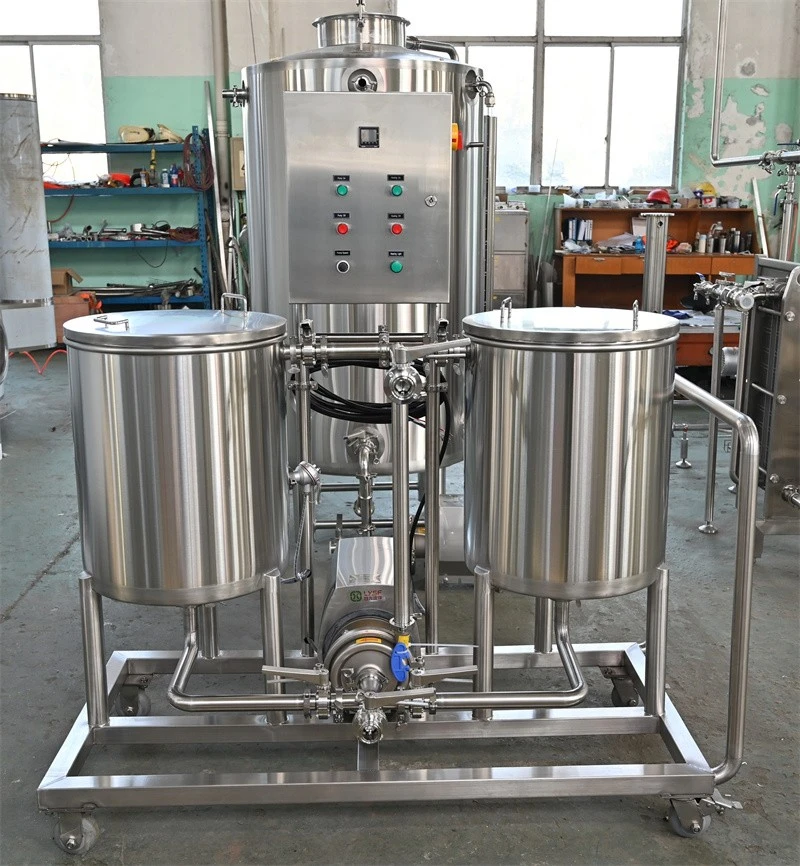

Shandong Chenma Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of 100l mobile cip cleaning system in China. With abundant experience, we are committed to providing high quality dairy and beverage processing equipment with competitive price. Welcome to buy premium 100l mobile cip cleaning system from our factory.
Acid Tank
The acid tank is designed for preparing and storing the acid cleaning solution used during the CIP process. The tank is manufactured from food-grade stainless steel304 and is equipped with a sanitary inlet, outlet and overflow connection.
The acid solution can be circulated through the product-contact pipelines, tanks, pumps, valves and heat exchangers to remove mineral deposits, scale and inorganic residues.
Alkaline Tank with Heating
The 100L alkaline tank is used for preparing and heating the alkaline cleaning solution, the tank with electric heating elements, and heating power is 4KW.
The alkaline solution is primarily used to remove milk residues, proteins, fats, sugars and other organic deposits from processing equipment.
The heating system is controlled through the electrical control panel, allowing the operator to set and monitor the cleaning temperature.
CIP Circulation Pump
A sanitary centrifugal CIP pump provides sufficient flow and pressure to circulate cleaning solutions through the equipment and pipelines.
Control Panel
The system is equipped with an independent stainless steel electrical control panel for centralized operation.
The control panel can control and monitor:
- CIP pump start/stop
- Alkaline solution heating
- Cleaning temperature
- Cleaning time
- Pump operation
- Tank selection
- System alarms and safety protection

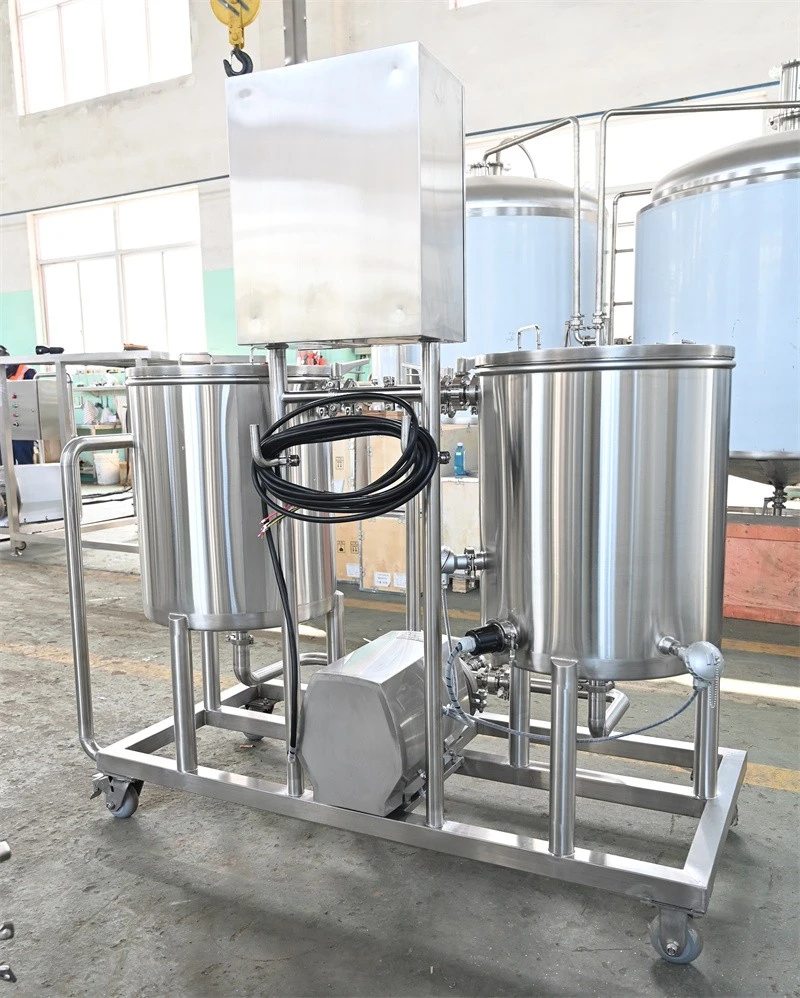

Mobile Design
All major components are installed on a stainless steel mobile frame/trolley.
The compact mobile design allows the CIP unit to be easily moved between different processing areas.
Typical CIP Cleaning Process
A typical cleaning cycle can be configured as:
Pre-Rinse → Alkaline Cleaning → Intermediate Rinse → Acid Cleaning → Final Rinse
The exact cleaning temperature, chemical concentration, circulation time and flow rate should be determined according to the product residue and equipment being cleaned.
Main Features
- 100L compact CIP cleaning system
- Separate acid and alkaline cleaning tanks
- Heated alkaline tank
- Sanitary CIP circulation pump
- Stainless steel mobile frame
- Integrated electrical control panel
- Temperature and cleaning-time control
- Compact design and easy movement
- Suitable for tanks, pipelines and processing equipment
- Food-grade sanitary stainless steel construction
Recommended Product Description
This compact CIP system is an ideal solution for dairy plants, beverage factories, breweries, wineries and food processing facilities requiring flexible and efficient cleaning of sanitary processing equipment.
