100L Milk Balance Tank

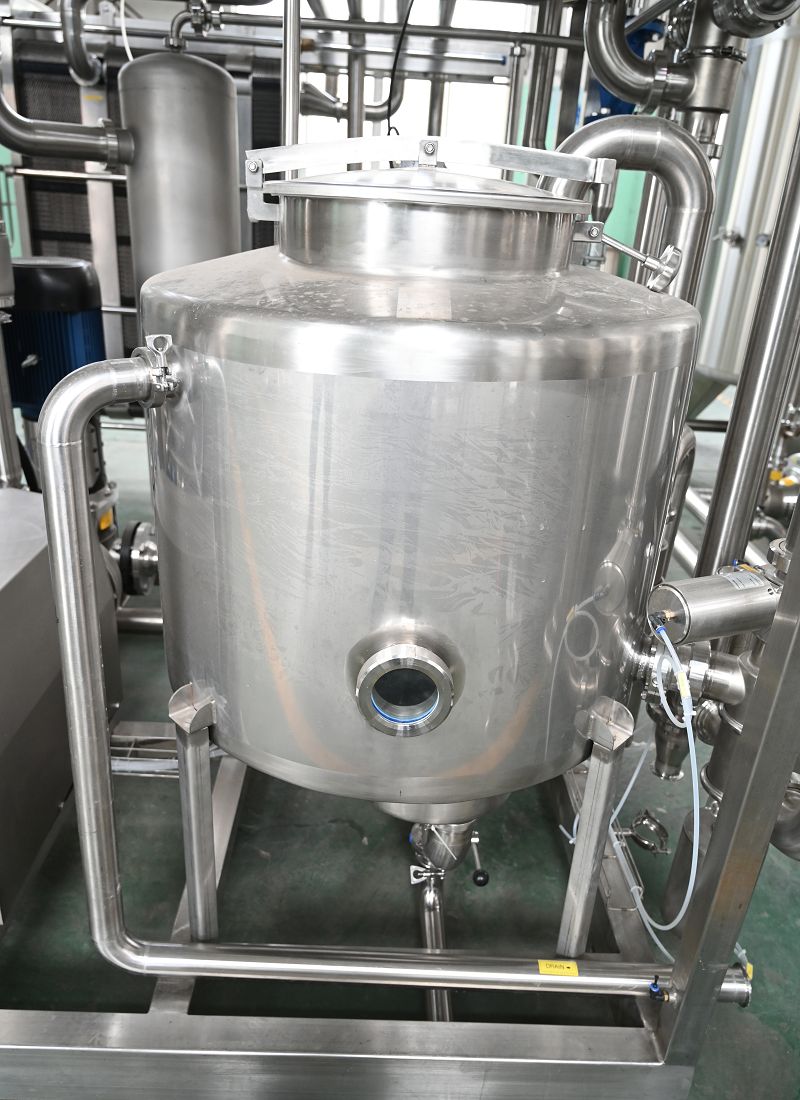

100L Milk Balance Tank, also known as buffer tank, is an essential small sanitary tank for dairy processing lines. It is generally installed before pasteurizer, homogenizer or filling machine to stabilize fluid pressure, buffer flow fluctuation and prevent pump cavitation, ensuring continuous and stable feeding. It is widely used in raw milk, yogurt, fruit juice and other liquid food processing pipelines. The whole unit is skid-mounted, constructed of sanitary stainless steel, equipped with hinged manhole, side sight glass, conical bottom, integrated stainless steel frame and sanitary piping & valves as shown in the picture.

Send Inquiry

Shandong Chenma Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of 100l milk balance tank in China. With abundant experience, we are committed to providing high quality dairy and beverage processing equipment with competitive price. Welcome to buy premium 100l milk balance tank from our factory.

Construction Features:

1.Tank Body Effective volume: 100L, made of food grade SUS304 with 2Bpolished inner surface, conical bottom design enables complete draining without residual liquid.

2.Top Assembly Quick-open hinged manhole for easy internal inspection and cleaning; air breather can be equipped to balance internal pressure.

3.Side Sight Glass Round sanitary sight glass allows real-time observation of liquid level inside the tank.

4.Bottom & Pipeline Conical bottom outlet fitted with sanitary ball valve, inlet, outlet and drain pipelines are pre-assembled on stainless steel skid frame.

5.Support Frame Integrated stainless steel support base for convenient positioning and connection with upstream and downstream process pipelines.

Main Functions

1.Buffer unstable flow from upstream process and stabilize feeding pressure for downstream pumps.

2.Collect air inside pipelines to avoid pump cavitation caused by suction of gas.

3.Temporarily store materials to guarantee continuous operation of pasteurization, homogenization and filling processes.

4.Act as transfer vessel for sampling and material status observation.

Advantages

Compact skid-mounted design, small footprint, perfectly matched with complete dairy processing lines.
SUS304 stainless steel construction meets food hygiene requirements and easy to clean.
Conical bottom avoids material residue and supports CIP cleaning.
Quick-open manhole and sight glass facilitate routine inspection and maintenance.
Pre-fabricated piping, only pipeline connection needed on site.

Application

Supporting equipment for plate pasteurizer, homogenizer, yogurt production line and beverage filling system.
