Shandong Chenma Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of 1000l manual cip cleaning system in China. With abundant experience, we are committed to providing high quality dairy and beverage processing equipment with competitive price. Welcome to buy premium 1000l manual cip cleaning system from our factory.

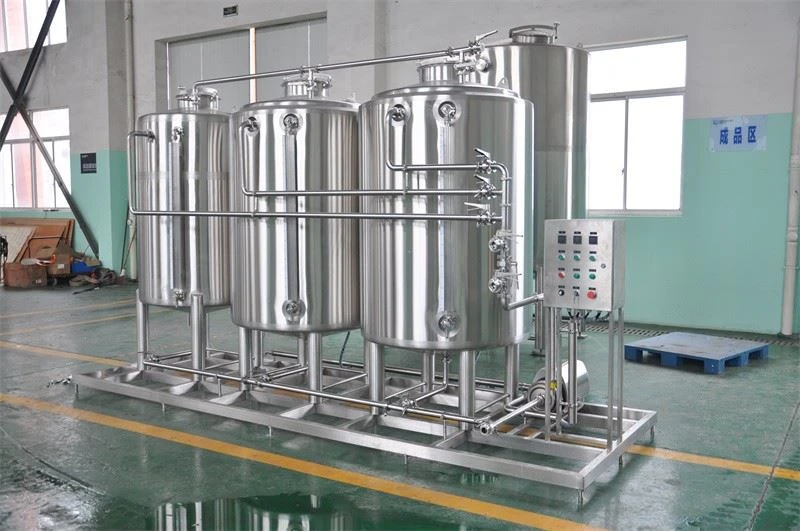

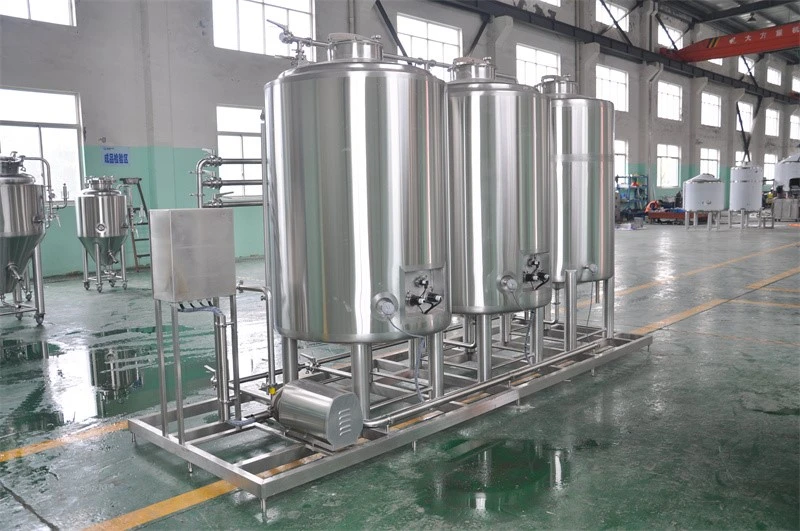

Main Construction:
Three Stainless Steel Tanks
Caustic Tank: Store alkaline detergent to remove protein, grease and organic residues
Acid Tank: Store acid detergent to eliminate limescale and mineral deposits
Hot Water Tank: Supply water for pre-rinsing and final rinsing All tanks are made of SUS304, fitted with level gauge, manhole, CIP spray ball, temperature sensor and drain outlet.
Sanitary Centrifugal Pump: Provides stable circulation pressure for cleaning liquid circulation.
Sanitary Pipeline & Valves:stainless steel sanitary piping and valves, hygienic layout without dead zones.
Independent Control Cabinet: Equipped with temperature indicators and operation buttons. Manual operation is standard;
Integrated Stainless Steel Skid Base All assemblies pre-installed and tested in factory. Only water, power connections are required on site.
Working Principle
Standard cleaning sequence: Pre-rinse with clean water → Circulating alkaline cleaning → Intermediate water rinse → Circulating acid cleaning → Final hot water rinse → Optional hot water sterilization. Cleaning solution circulates inside closed equipment loop. Combined chemical action and fluid scouring remove residues thoroughly. No need for manual disassembly of production equipment.
Advantages
Skid-mounted integrated design, convenient for transportation and installation
SUS304 stainless steel construction, meets food hygiene requirements
Three separate tanks for different cleaning agents, flexible cleaning schedules
Real-time temperature monitoring ensures stable cleaning performance
Manual control as standard; automatic programmable cleaning available as upgrade
Application
Dairy processing lines (yogurt, pasteurized milk), fruit juice, plant beverage, sauce & condiment production plants
