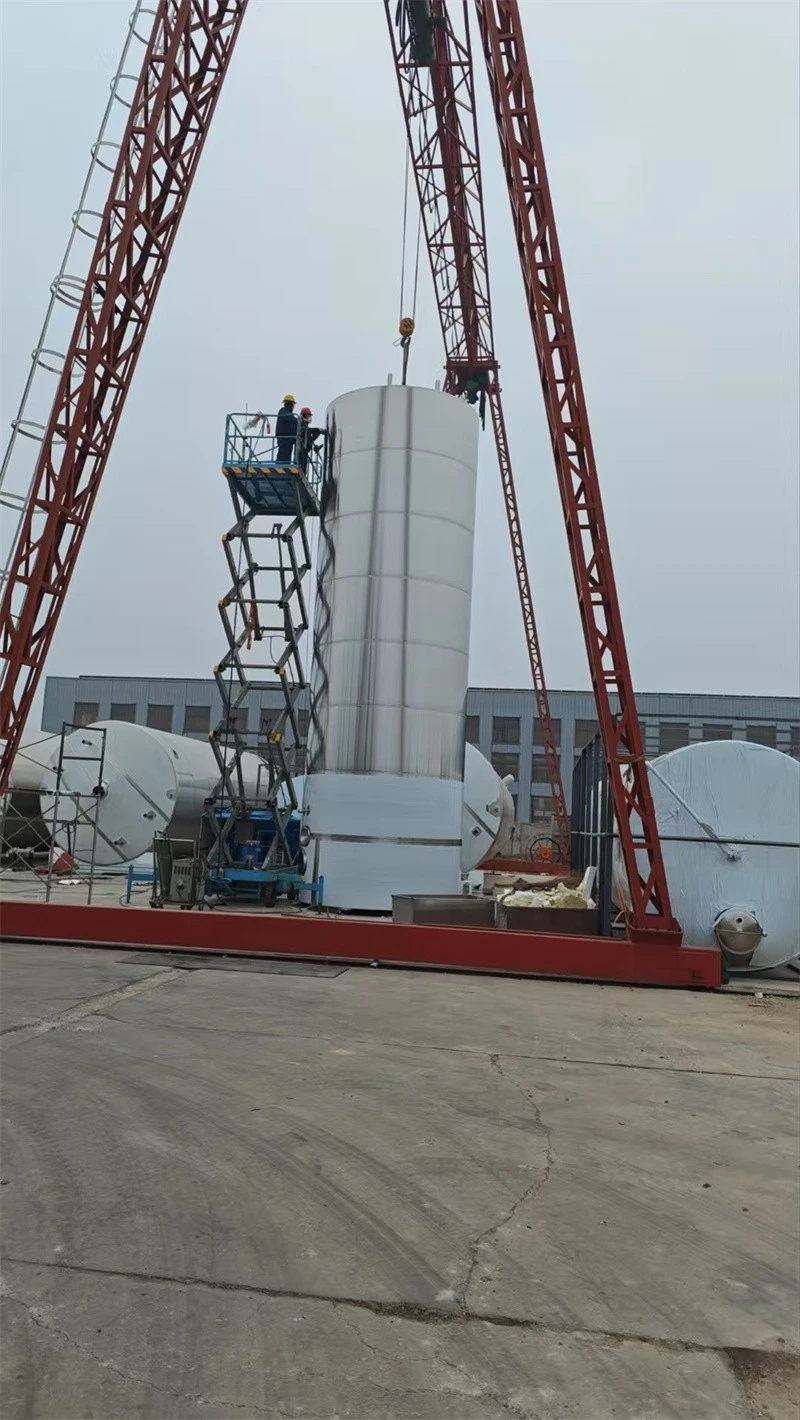

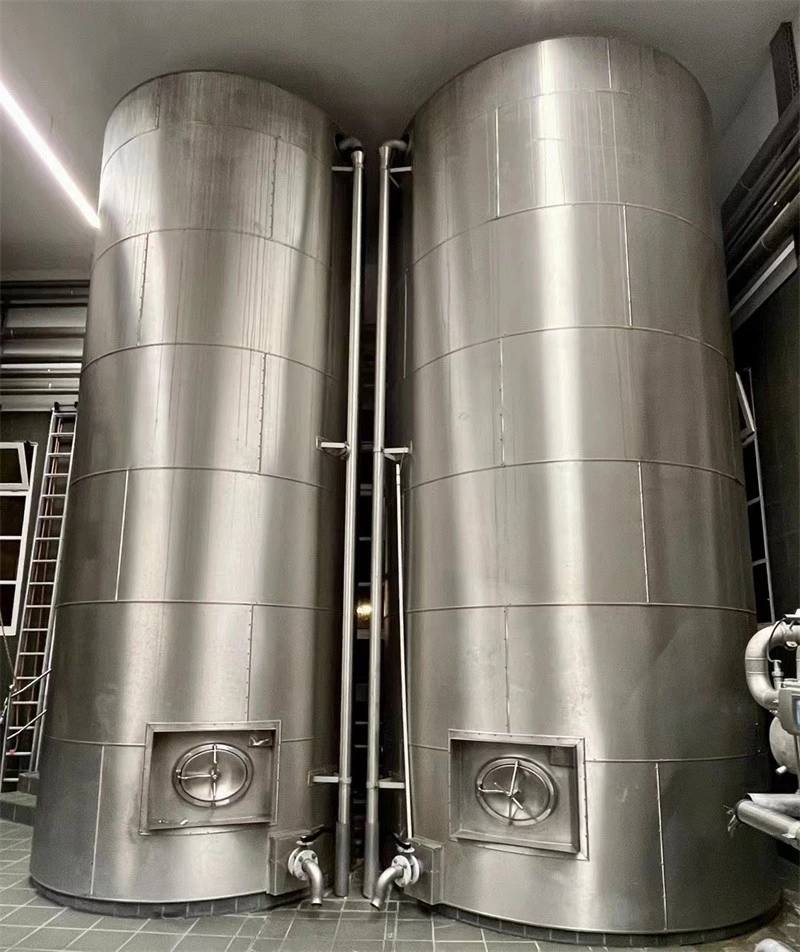

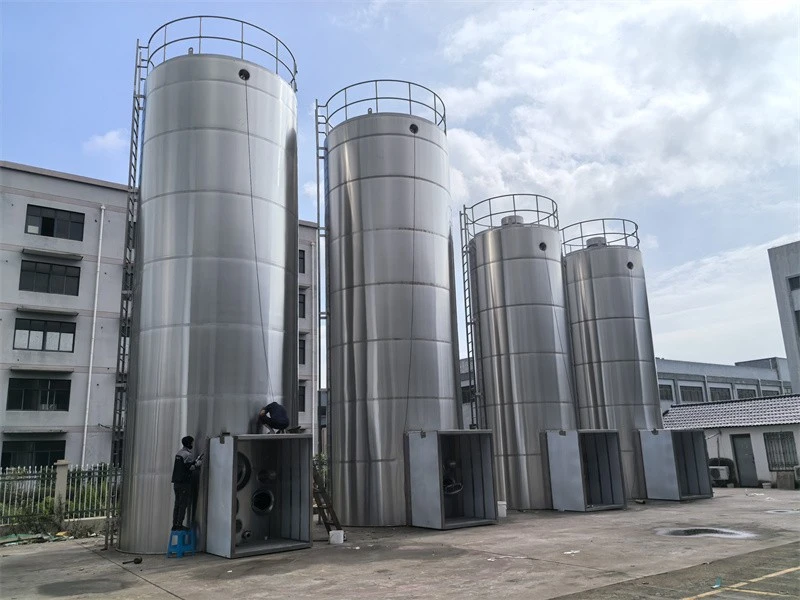

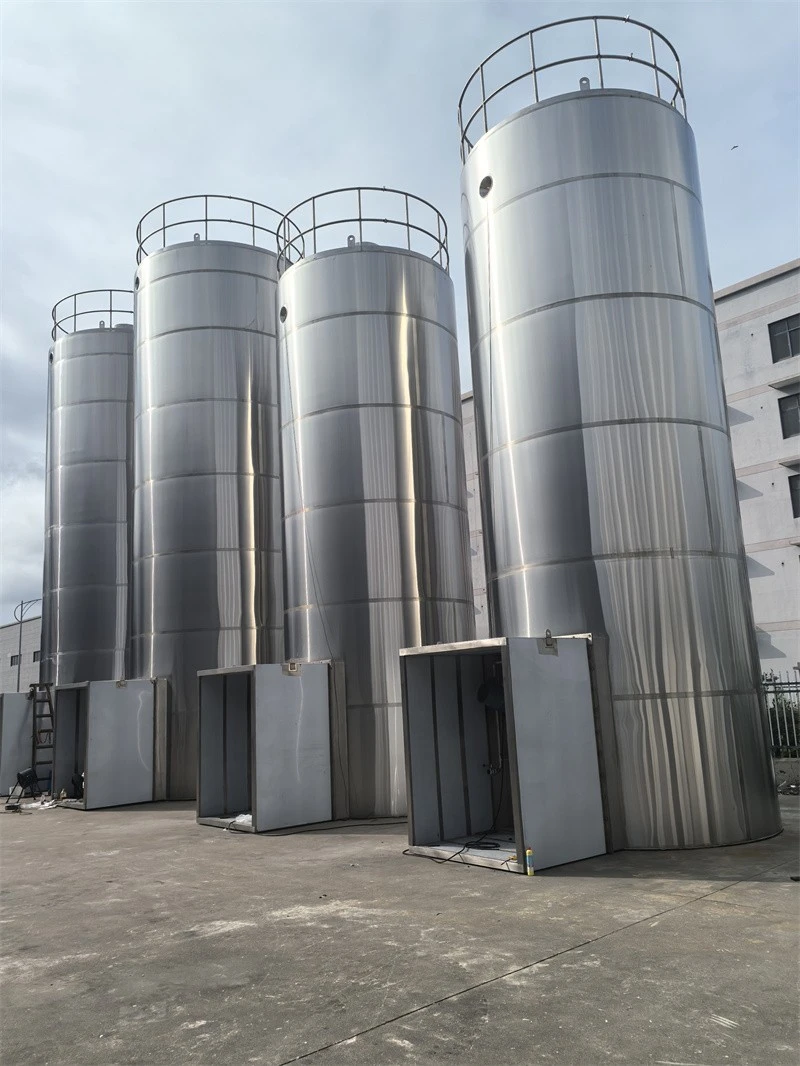

Shandong Chenma Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of 30000l vertical milk storage tank in China. With abundant experience, we are committed to providing high quality dairy and beverage processing equipment with competitive price. Welcome to buy premium 30000l vertical milk storage tank from our factory.
Standard Specifications:
- Capacity: 30,000 Liters (30 m³)
- Tank Type: Vertical Milk Storage Tank
- Material: Food-grade SUS304 stainless steel (SUS316L optional)
- Tank Structure: Double-wall(with cooling jacket and insulation)
- Insulation: 80–100 mm high-density polyurethane foam
- Cooling Jacket: Dimple plate cooling jacket (optional)
- Cooling System: Chilled water or glycol cooling (optional)
- Storage Temperature: 2–4°C
- Agitator: Low-speed sanitary agitator for uniform temperature and cream distribution
- Motor: Energy-efficient geared motor (VFD optional)
- Temperature Sensor: PT100 high-precision temperature sensor
- Temperature Control: Digital automatic controller or PLC touchscreen system
- Cleaning System: Rotary CIP spray ball
- Manhole: Top sanitary manhole with inspection cover
- Air Vent: Sanitary air vent with sterile filter
- Outlet: Bottom sanitary butterfly valve
- Surface Finish: Interior 2B polish or mirror polished (Ra ≤ 0.4 μm); exterior satin polished
- Support Structure: Stainless steel skirt support or heavy-duty legs
- Power Supply: 220V / 380V / 415V / 440V / 480V, 50/60Hz (Customizable)
Key Features
- Large 30,000L storage capacity for continuous dairy production
- Food-grade stainless steel ensures hygienic and safe milk storage
- Thick polyurethane insulation minimizes heat loss and improves energy efficiency
- Optional dimple plate cooling jacket for efficient temperature control
- Gentle agitation maintains uniform milk temperature and prevents cream separation
- Automatic temperature monitoring and precise digital control
- Built-in CIP cleaning system for quick and hygienic cleaning
- Durable, corrosion-resistant construction with low maintenance requirements
- Customizable dimensions, voltage, and accessories to suit different processing plants
Applications
- Dairy processing plants
- Milk collection and cooling centers
- Large-scale dairy farms
- Pasteurized milk storage
- Yogurt and cheese production lines
- Cream and dairy ingredient storage
- Beverage and liquid food processing facilities
Optional Configurations
- PLC touchscreen control system
- Refrigeration condensing unit
- Load cells for weighing
- Radar or ultrasonic level sensor
- Stainless steel ladder, platform, and safety guardrail
- SS316L stainless steel construction
- Customized inlet, outlet, and piping connections
Advantages
- Maintains a stable low-temperature environment for maximum milk freshness
- Hygienic design compliant with international dairy processing standards
- Excellent insulation reduces refrigeration energy consumption
- Easy integration into automated dairy production lines
- Long service life with minimal maintenance
- Suitable for storing raw milk, pasteurized milk, cream, and other liquid dairy products
30000L Vertical Milk Storage Tank is an ideal storage solution for medium- and large-scale dairy processing facilities, offering reliable temperature control, superior hygiene, and efficient storage performance to ensure consistent product quality throughout the dairy production process.
