Shandong Chenma Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of 100tons milk silo in China. With abundant experience, we are committed to providing high quality dairy and beverage processing equipment with competitive price. Welcome to buy premium 100tons milk silo from our factory.
Specification list for 100tons milk silo tank:
1.Sanitary Stainless steel,inside for the tank will be 2B polish, inner body with stainless steel 316L and outside with stainless steel 304;
2.Inner body diameter is 3950mm, thickness is 4mm, material is stainless steel 316L;
3.Cylinder height:9000mm;
4.Upper head: diameter:3950mm, thickness 3mm, material: stainless steel316L, conical head, taper angle is 150°; Lower head: diameter: 3950mm,thickness 5mm, material:stainless steel 316L, conical head, taper angle is 150°;
5.Outer cladding: Diameter 4150mm, material: stainless steel 304; thickness is 2mm,Bottom outer cladding: flat bottom, thickness is 3mm, material:stainless steel304;
6.Top head: Diameter 4150mm, thickness: 3mm, material: stainless steel 304, conical top, taper angle is 150°;
7.Material of parts in contact with the product: SS316L
8.Surface brushed, welding line polish sanding light belt;
9.Effective capacity:100,000L, total capacity: 110,860L;

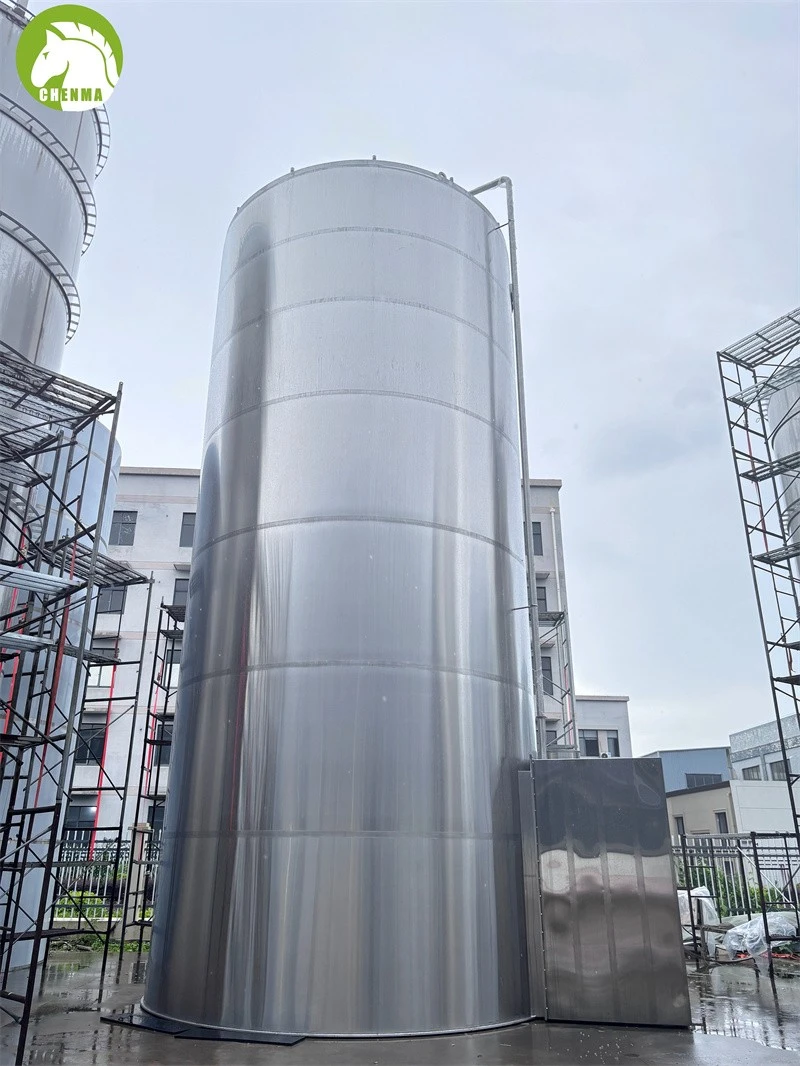

10.Diameter is 4150mm, height is 9960mm;
11.Conical top and conical bottom;
12.Equipped with an overflow breathing system DN400mm, material: stainless steel 304;
13.1.5"sterile sample valve, material is stainless steel 316L ;
14.4" milk outlet assembly;
15.3" milk inlet, with thread connection;

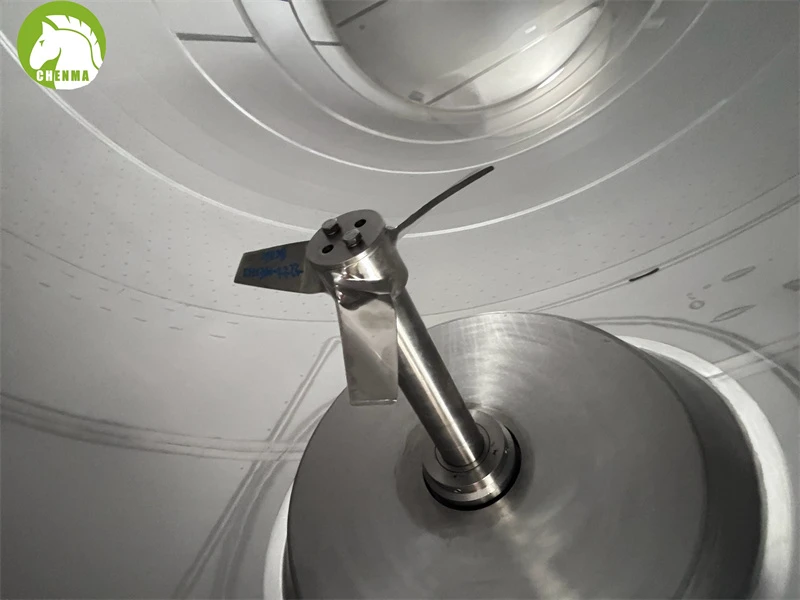

16.Side agitator system: stirring power is11KW , 900 rpm, variable frequency, side agitator, material is stainless steel 316L, agitator brand:Great Wall and aigtator motor brand is SEW;
17.PU insulation, thickness: 100mm;
18.With vortex breaker;
19.Fully welded cladding;
20.Welding method: TIG welding;
21.There are 2pcs CIP spray ball;
22.Bimetallic thermometer;
23.With cooling jacket, cooling are is 30m2, thickness of cooling jacket is 1.5mm,volume is 150L, material is stainless steel 304;

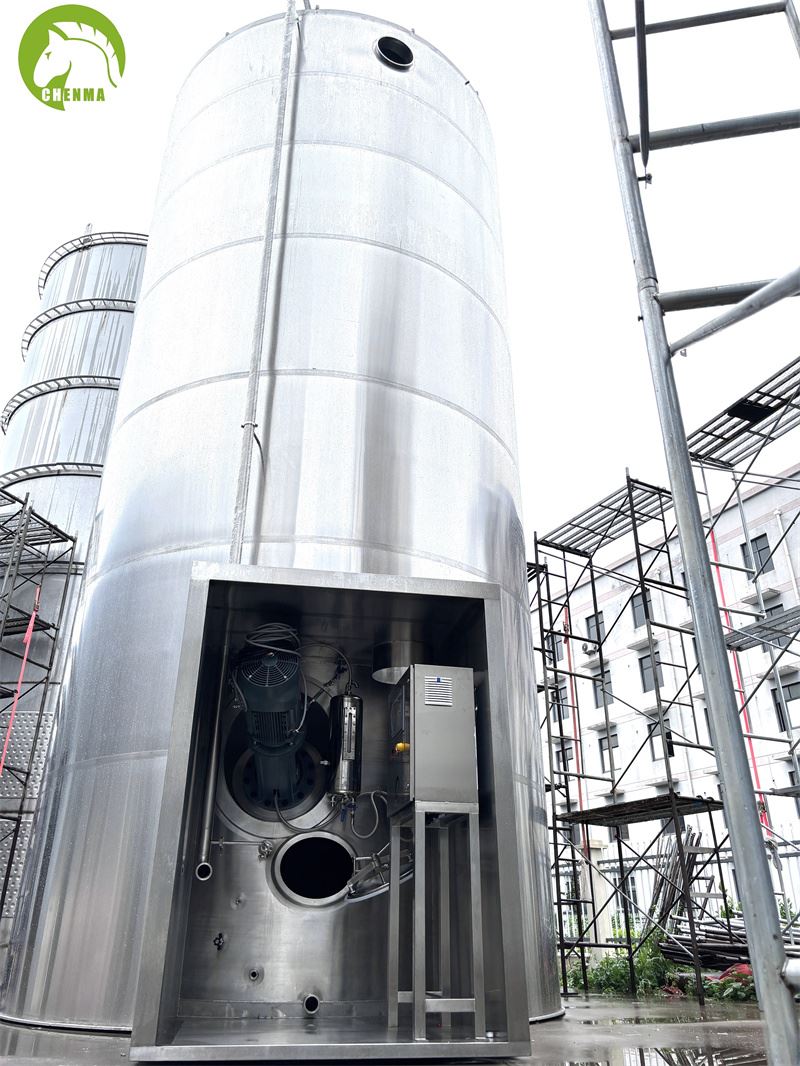

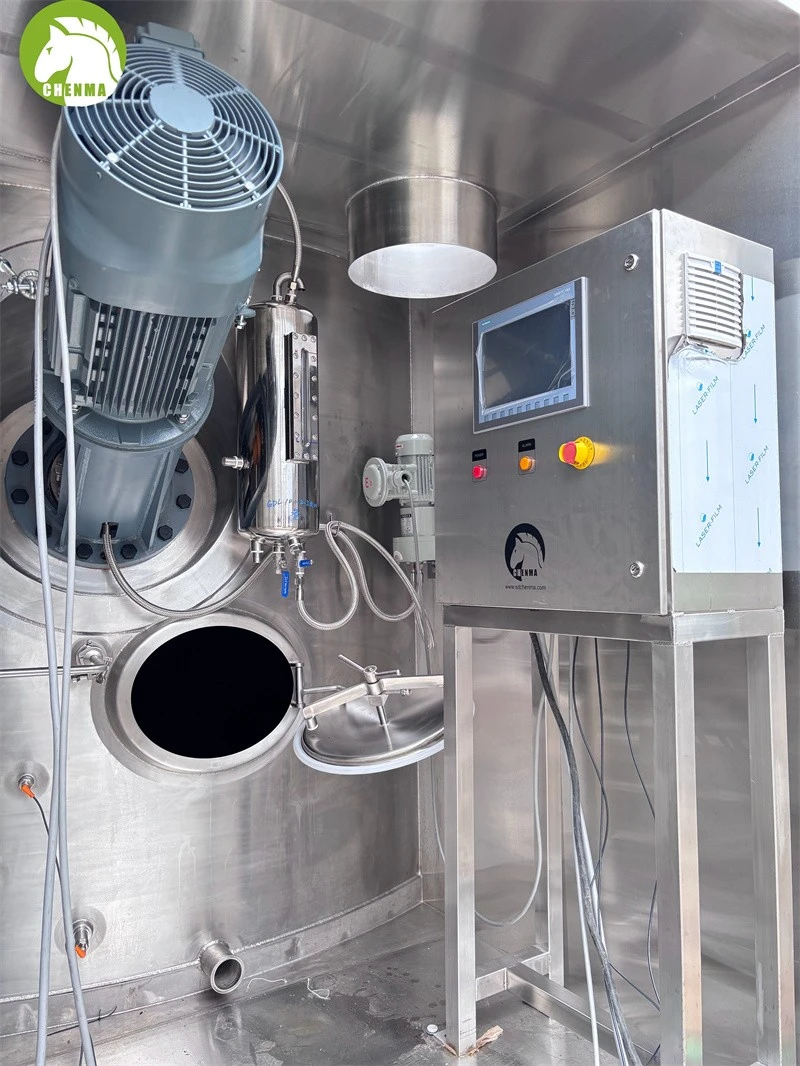

24.The tank with alcove;
25.The tank without legs to be mounted on the floor;
26.Complete with associated valves and fittings.
Key Features
- Large-capacity storage for continuous dairy production
- Food-grade stainless steel construction for maximum hygiene
- Excellent thermal insulation reduces energy consumption
- Optional dimple jacket cooling system for efficient temperature maintenance
- Side gentle agitation prevents cream separation while protecting milk quality
- Automatic temperature monitoring and precise control
- Built-in CIP cleaning system for fast and hygienic cleaning
- Corrosion-resistant, durable, and easy to maintain
- Custom-designed dimensions to fit different plant layouts
- Fully customizable according to customer requirements
Applications
- Dairy processing plants
- Milk collection and cooling centers
- Large-scale dairy farms
- Pasteurization production lines
- Yogurt and cheese factories
- Milk receiving and buffer storage
- Beverage and liquid food processing plants
Optional Configurations
- PLC touchscreen automatic control system
- Refrigeration condensing unit
- Load cells for weighing
- Radar or ultrasonic level sensor
- Stainless steel ladder and maintenance platform
- Safety guardrail
- SS316L stainless steel construction
- Customized inlet, outlet, and pipe connections
Advantages
- Maintains milk freshness with stable low-temperature storage
- Meets international food-grade hygiene standards
- Energy-efficient design with high-performance insulation
- Supports fully automated dairy production lines
- Long service life with low maintenance requirements
- Suitable for storing raw milk, pasteurized milk, cream, and other liquid dairy products
100 Tons Milk Silo Tank is an ideal storage solution for medium- and large-scale dairy processing facilities, offering safe, hygienic, and energy-efficient milk storage while ensuring consistent product quality throughout the production process.
