Shandong Chenma Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of 2000l full-automatic cip system in China. With abundant experience, we are committed to providing high quality dairy and beverage processing equipment with competitive price. Welcome to buy premium 2000l full-automatic cip system from our factory.

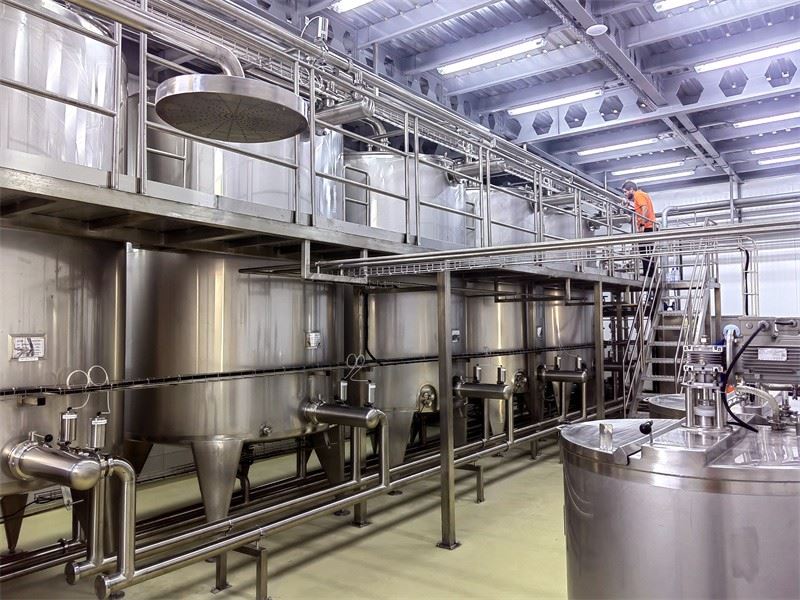

2000L Fully Automatic CIP Cleaning System is designed for efficient and hygienic cleaning of tanks, pipelines, heat exchangers, filling machines and other process equipment used in food, beverage, dairy, brewery, wine and pharmaceutical production.

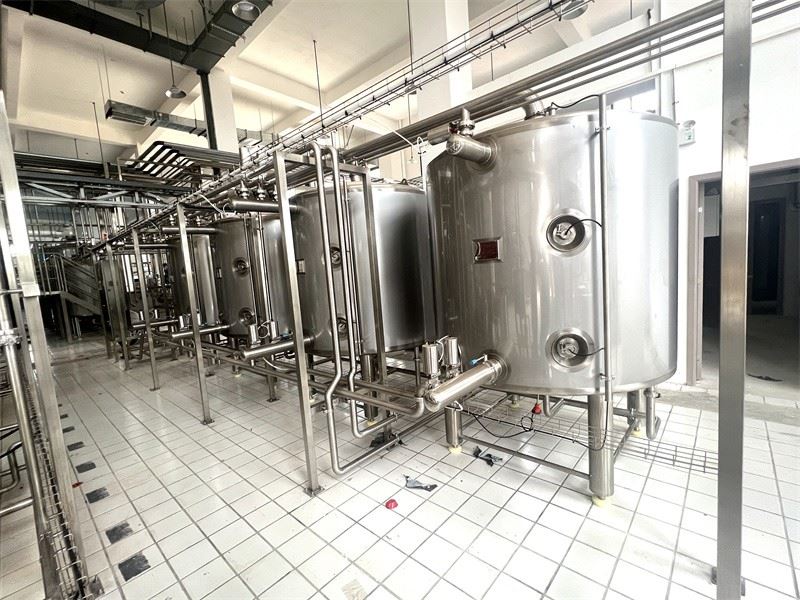

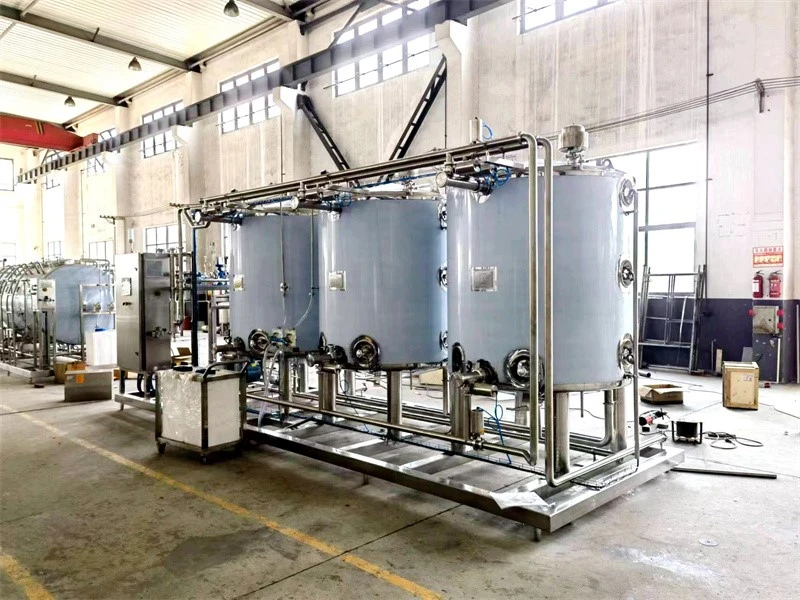

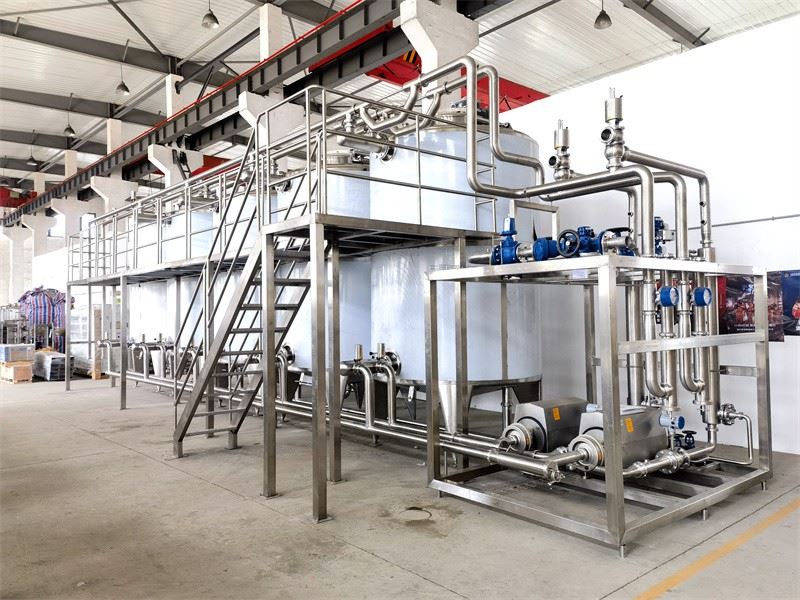

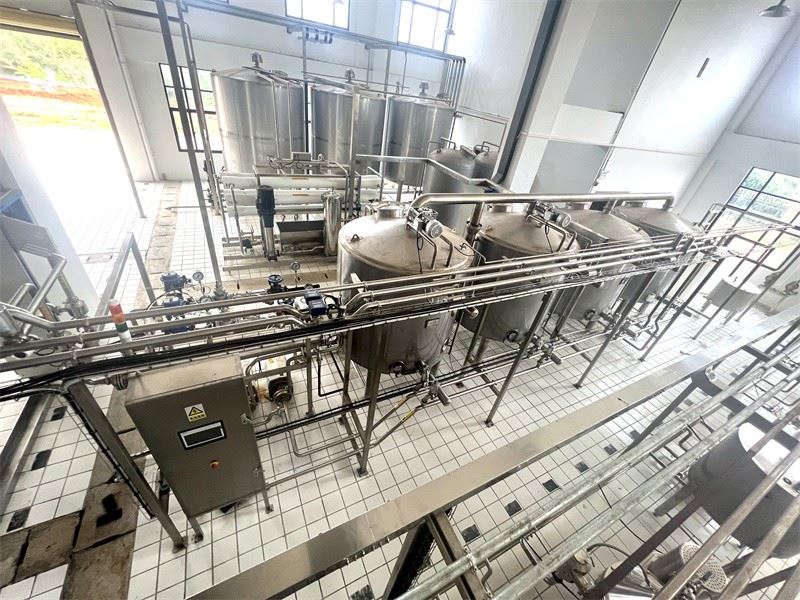

The system features four independent CIP vessels, typically configured for alkaline tank, acid tank, hot water tank and recovery water tank. It can automatically complete the complete cleaning cycle, including solution preparation, heating, circulation, rinsing and drainage, significantly reducing manual operation and improving cleaning consistency.
The 2000L capacity provides sufficient cleaning solution for medium- to large-scale processing lines. The system can be connected directly to production tanks and sanitary pipelines, with the cleaning parameters controlled through an automatic PLC control system.
Main Features
- Capacity: 2000L per CIP vessel
- Configuration: 4vessel or 5vessles CIP cleaning system
- Material: Food-grade SS304, SS316L optional
- Automatic Control: PLC + touchscreen HMI
- Heating: Pleat heat exchanger
- Cleaning Solutions: Acid, alkali, sterilizer, hot water and recovery water tank
- Circulation: High-efficiency sanitary CIP pump
- Cleaning Method: Automatic circulation cleaning
- Temperature Control: Automatic temperature monitoring and control
- Flow Control: Adjustable cleaning flow and pressure
- Sanitary Design: Hygienic piping, valves and fittings
- Insulation: PU insulation for heated vessels
- Safety: Over-temperature, low-liquid-level and pump protection
- Application: Dairy, beverage, juice, brewery, winery, food and other sanitary processing industries
Typical CIP Cleaning Process
Pre-rinse → Caustic Cleaning → Intermediate Rinse → Acid Cleaning → Final Rinse → Sanitization
The actual cleaning sequence can be customized according to the product, equipment, cleaning chemicals and customer's process requirements.
Advantages
The 4-vessel configuration allows different cleaning liquids to be stored and reused independently, helping reduce water and chemical consumption. Fully automatic operation provides stable cleaning temperature, concentration, flow and cleaning time, while minimizing operator involvement.
The system can also be customized with automatic chemical dosing, conductivity control, return-water recovery, steam heating, flow meters, pneumatic valves and remote monitoring according to the customer's production requirements.
Specification list as follows
|
No. |
Item |
Description |
Quantity |
|
1 |
Alkali Tank |
Volume:2000L Material: SUS304 and SUS316 Conic top and conic bottom Double layers (outer: 2 mm, SUS304; inner: 3mm, SUS316) with PU (50mm) keep warm. |
1 |
|
2 |
Acid tank |
Volume:2000L Material: SUS304 and SUS316 Conic top and tonic bottom Double layers (outer: 2 mm, inner: 3mm) with PU (50mm) keep warm. |
1 |
|
3 |
Hot water tank |
Volume:2000L Material: SUS304 Conic top and tonic bottom Double layers (outer: 2 mm, inner: 3mm) with PU (50mm) keep warm. |
1 |
|
4 |
Return water tank |
1.Volume:2000L 2.Material: SUS304 3.Conic top and tonic bottom 4.Double layers (outer: 2 mm, inner: 3mm) with PU (50mm) keep warm. |
|
|
5 |
Strong alkali tank |
Volume:60L Material: PE |
1 |
|
6 |
Strong acid tank |
Volume:60L Material: PE |
1 |
|
7 |
Diaphragm pump |
Flow:14L/min |
2 |
|
8 |
Pleat heat exchanger |
Material: SUS304 Exchange area:8m2 Original: China |
1 |
|
9 |
Delivery pump |
Centrifugal pump Material: SUS 316 Flow:20T/h, lift:36m |
1 |
|
10 |
Pipes and Valves |
Pneumatic Butterfly Valve: 63, Yuan-an Piping: SUS304 |
1 unit |
|
11 |
Steam control system |
Steam control valve: SPIRAX SARCO Steam pressure reducing valve: SPIRAX SARCO Steam filter: SPIRAX SARCO Cut off valve: SPIRAX SARCO Steam trap: SPIRAX SARCO |
1 unit |
|
12 |
Control System |
PLC: SIEMENS, S7-1200 Touch Screen: SIEMENS, KTP1200 Electrical: Schneider Conductivity meter: JUMO Flow switch: IFM Liquid Level Switch: IFM Temperature sensor: JUMO Control panel: SUS304, IP55 |
1 unit |
