Shandong Chenma Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of 10000l milk blending tank in China. With abundant experience, we are committed to providing high quality dairy and beverage processing equipment with competitive price. Welcome to buy premium 10000l milk blending tank from our factory.
Product Overview:

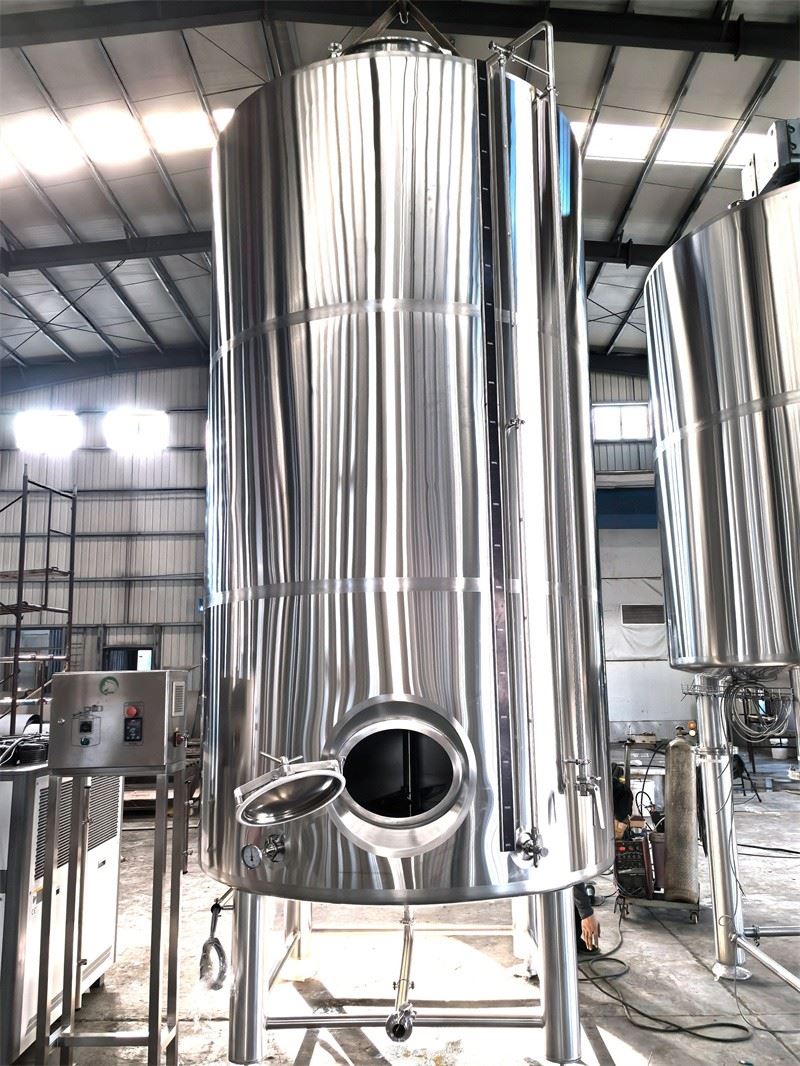

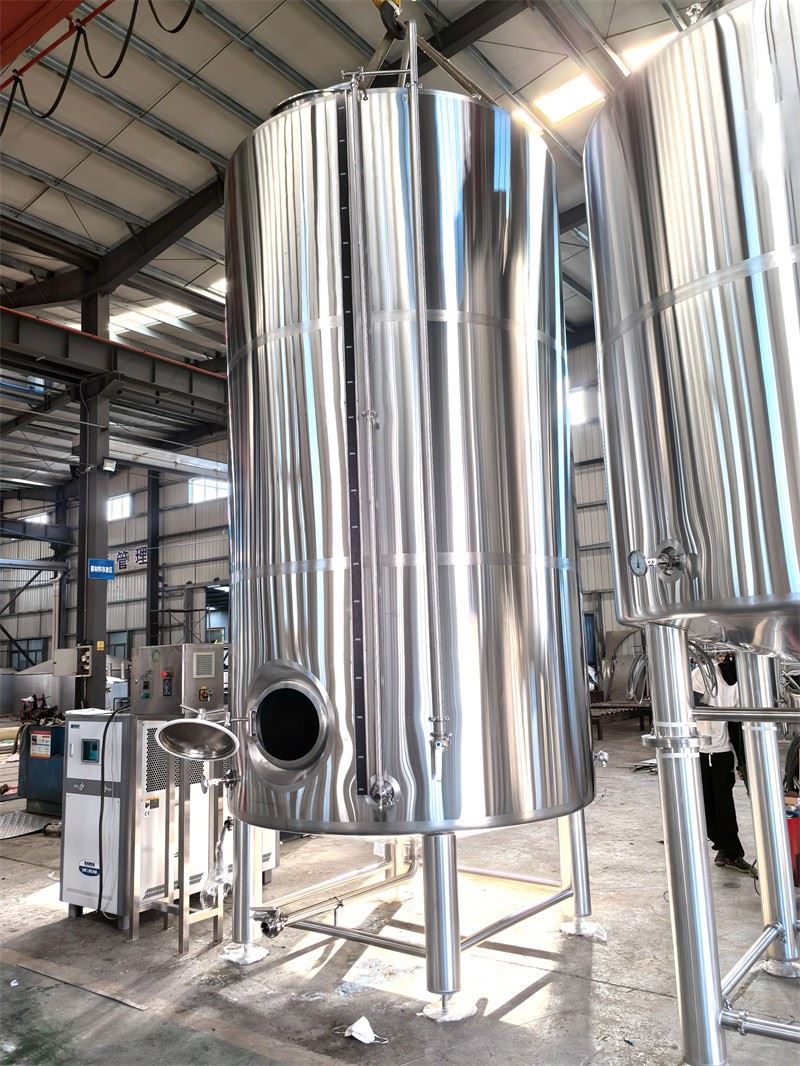

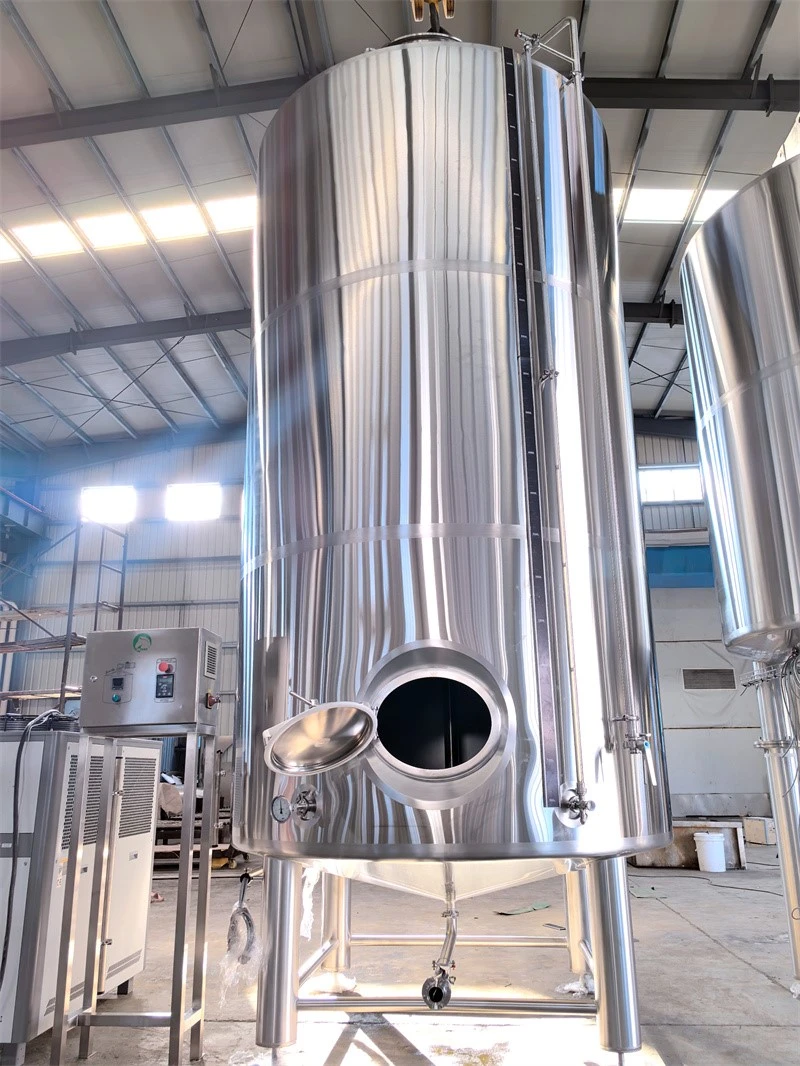

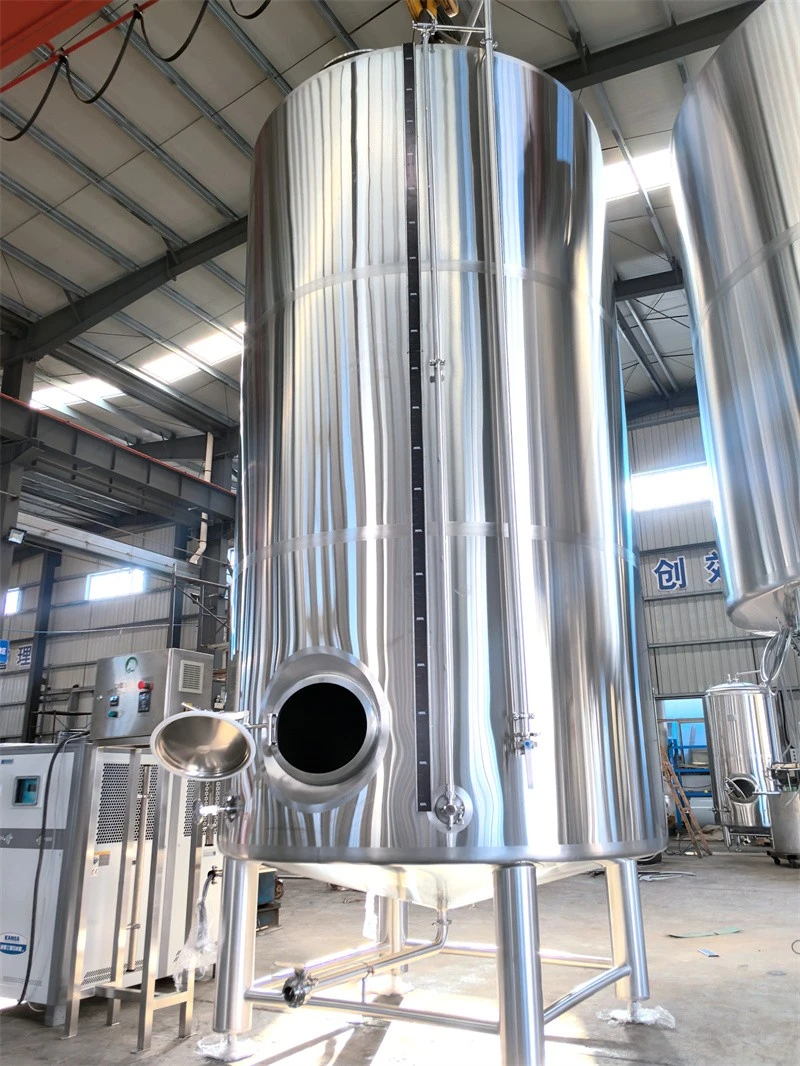

The 10000L milk mixing tank provides controlled and uniform mixing of milk and other ingredients. During operation, the agitator creates a gentle and consistent circulation inside the tank, helping to distribute ingredients evenly and maintain product uniformity.
For processes requiring temperature control, the tank can be equipped with a dimple jacket, half-pipe coil . Hot water/ steam can be used as the heating medium, while chilled water or glycol can be used for cooling.
The tank can also be integrated into an automated dairy processing line and connected with CIP cleaning systems, pumps, heat exchangers, homogenizers, pasteurizers and filling machines.
Key Features
1. 10000L Large Processing Capacity
With a nominal capacity of 10000L, the tank is suitable for medium- and large-scale dairy production.
The working volume can be customized according to the customer's process requirements. A suitable headspace can also be reserved to accommodate product expansion, mixing and foaming.
2. Food-Grade Stainless Steel:
The product-contact surface is manufactured from sanitary SS304 stainless steel.
SS316L is available as an optional material for applications requiring enhanced corrosion resistance.
The internal surface can be polished to a sanitary finish to minimize product residue and facilitate cleaning.
3. Efficient Agitation System
The tank is equipped with a sanitary agitator designed to provide uniform mixing throughout the tank.
Different agitator designs can be selected according to product viscosity and mixing requirements, including:
Paddle agitator
Propeller agitator
Anchor agitator
Frame agitator
High-shear mixer
Customized sanitary agitator
The agitator speed can be customized according to the characteristics of the milk product and ingredients.
4. Heating and Cooling Function
The 10000L tank can be equipped with a jacket for temperature control.
Possible heating methods include:
Steam heating
Cooling methods include:
Chilled-water cooling
Glycol cooling
Refrigeration system
The heating and cooling capacity should be selected based on the required product temperature, heating/cooling time, ambient conditions and process flow.
5. High-Performance Insulation
For products requiring temperature preservation, the tank can be supplied with an insulation layer, typically using polyurethane foam or aluminum silicate insulation.
The insulation helps reduce heat transfer with the surrounding environment and improves temperature stability.
6. Hygienic Design
All product-contact components are designed for sanitary food processing.
Typical sanitary components include:
Sanitary butterfly valves
Tri-clamp fittings
Sanitary product outlet
Sanitary manhole
CIP spray ball
PT 100 hygienic temperature sensor
Food-grade piping
Sanitary agitator seal
The internal tank surface can be polished to facilitate cleaning and reduce product accumulation.
7. CIP Cleaning
The tank can be equipped with a CIP spray ball and connected to an external CIP cleaning system.
A typical CIP process may include:
Pre-rinsing → Caustic Cleaning → Intermediate Rinsing → Acid Cleaning → Final Rinsing → Sanitization
The actual CIP procedure can be customized according to the customer's product and cleaning requirements.
8.Typical Technical Specifications
Tank Capacity: 10000L
Tank Type: Vertical cylindrical mixing tank
Application: Milk and dairy product processing
Material: SS304
Optional Material: SS316L
Working Volume: Customized according to process requirements
Agitator: Sanitary mechanical agitator
Agitator Type: Paddle / anchor / frame / propeller / customized
Heating Method: Steam / hot water
Cooling Method: Chilled water / glycol
Jacket: Dimple plate / half-pipe coil
Insulation: Polyurethane foam/aluminum silicate insulation
Temperature Sensor: PT100
Control: Digital controller / PLC
Cleaning: CIP cleaning
CIP Device: Sanitary spray ball
Inlet/Outlet: Sanitary tri-clamp connection
Manhole: Sanitary stainless steel manhole
Surface Finish: Sanitary polishing
Agitator Seal: Mechanical seal
Control Panel: Stainless steel electrical control cabinet
Power Supply: Customized according to customer's country
9.Typical Applications:
The 10000L stainless steel milk mixing tank can be used for:
Milk Processing
Used for mixing and preparing fresh milk before pasteurization, homogenization or further processing.
Flavored Milk
Milk can be mixed with sugar, cocoa, flavors, stabilizers and other ingredients to produce flavored milk beverages.
Yogurt Production
The tank can be used for milk preparation and ingredient blending before pasteurization and fermentation.
Dairy Beverage Production
Suitable for preparing milk-based beverages and other dairy formulations.
Chocolate Milk
The agitator helps disperse cocoa powder, sugar and other ingredients uniformly throughout the milk.
Food and Beverage Processing:
With appropriate customization, the tank can also be used for other liquid food and beverage products.
Typical Process Connection:
A typical dairy processing configuration can be:
Raw Milk → Milk Storage Tank → 10000L Milk Mixing Tank → Pasteurizer → Homogenizer → Cooling → Fermentation/Storage → Filling
For flavored milk:
Milk → Mixing Tank → Sugar/Ingredient Addition → Mixing → Pasteurization → Homogenization → Cooling → Filling
The exact process configuration should be designed according to the customer's final product, production capacity and process requirements.
Optional Configurations:
The 10000L milk mixing tank can be customized with:
SS304 or SS316L material
Heating + cooling jacket
Different agitator designs
High-shear mixer
Bottom-entry agitator
Level sensor
Load cells
PLC siemens touch-screen controller
Customized inlet and outlet connections
10.Advantages:
Large Capacity: 10000L capacity is suitable for industrial dairy production.
Sanitary Construction: Food-grade stainless steel and hygienic fittings meet the requirements of food and dairy processing.
Uniform Mixing: The customized agitator provides consistent product mixing.
Temperature Control: Heating and cooling functions can be integrated according to the process.
Easy Cleaning: CIP-compatible design reduces manual cleaning requirements.
Flexible Configuration: Tank dimensions, agitator, jacket, insulation, valves and control system can all be customized.
Complete Dairy Solution: The tank can be integrated with pasteurizers, homogenizers, heat exchangers, CIP systems, storage tanks and filling lines.
