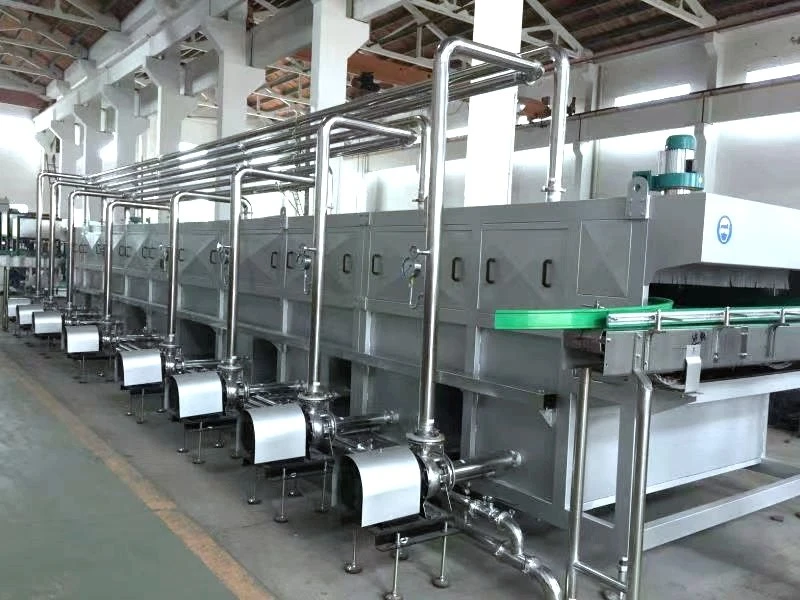

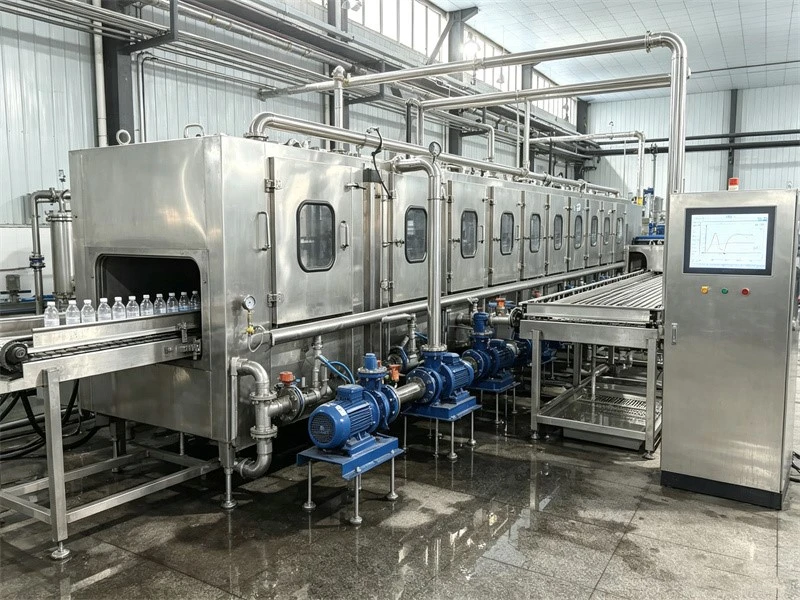

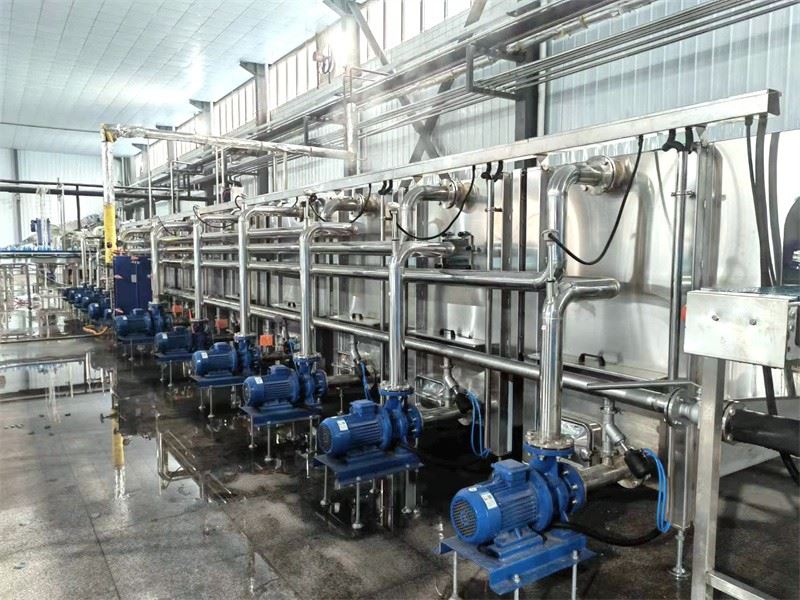

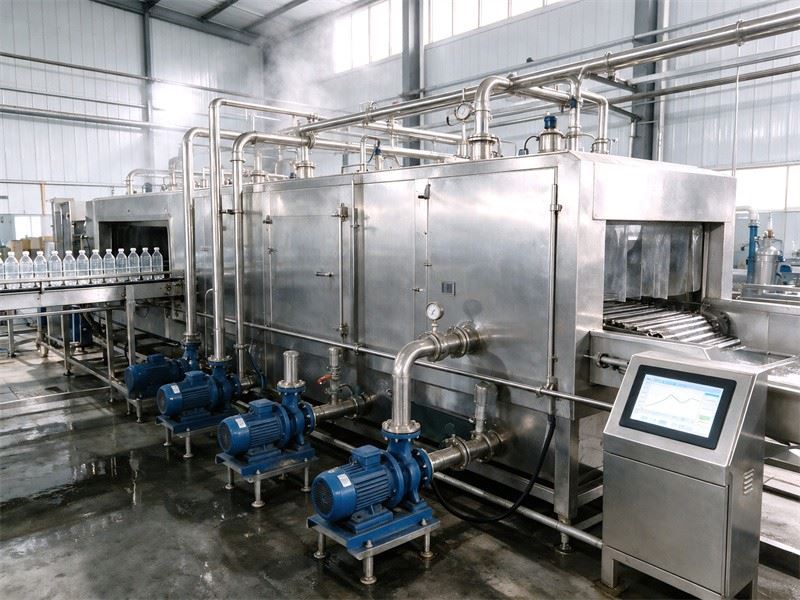

Shandong Chenma Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of 3000-5000bottles/hour tunnel sterilzer in China. With abundant experience, we are committed to providing high quality dairy and beverage processing equipment with competitive price. Welcome to buy premium 3000-5000bottles/hour tunnel sterilzer from our factory.
Main Features:
- Capacity: 3,000–5,000 bottles/hour
- Application: Juice, tea, milk beverages, functional drinks, beer and other bottled beverages
- Pasteurization Method: Continuous hot-water spray
- Temperature Zones: 7–10 zones, customizable according to the process
- Sterilization Temperature: Typically 60–65°C for beverage pasteurization, adjustable according to the product
- Sterilization/Holding Time: Approximately 15–30 minutes, depending on product requirements
- Conveyor: Food-grade stainless steel or modular conveyor belt
- Material: SUS304 stainless steel; SUS316L available as an option
- Control System: PLC + touchscreen HMI
- Temperature Control: Independent control of each temperature zone
- Heating Source: Hot water, steam or electric heating
- Cooling: Circulating warm water and cooling water
- Operation: Automatic continuous operation
- Bottle Types: Glass bottles, PET bottles and cans, depending on conveyor configuration
The tunnel can be customized according to bottle size, filling volume, product type, required pasteurization temperature, holding time and production capacity. Commercial tunnel pasteurizers are commonly designed from several thousand bottles/hour upward, with the tunnel dimensions and number of zones determined by these process parameters
