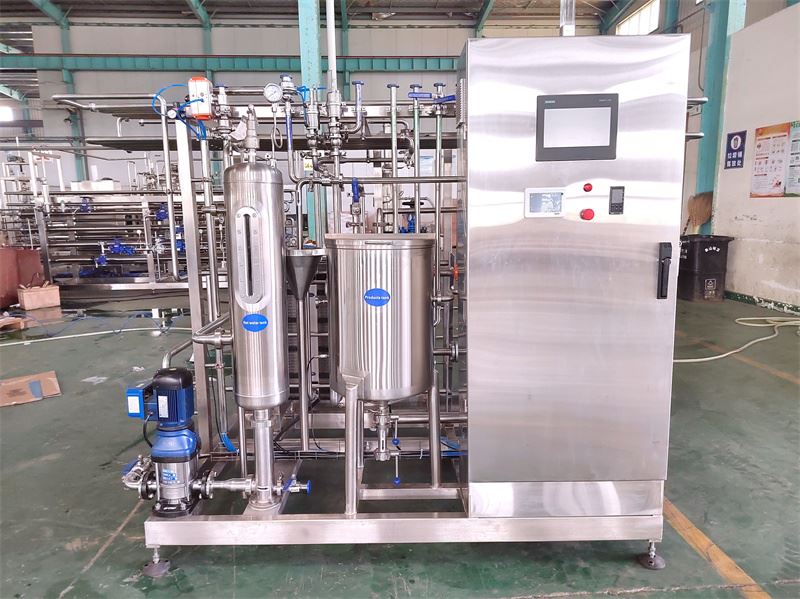

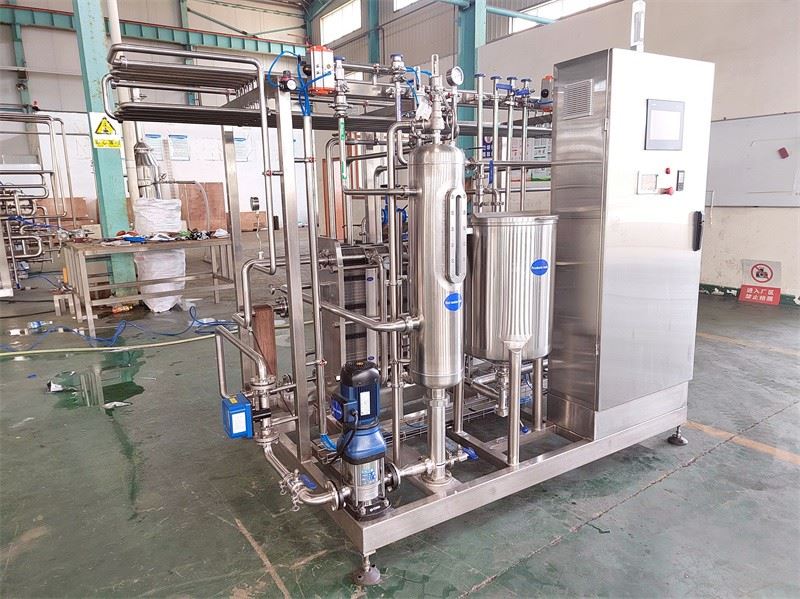

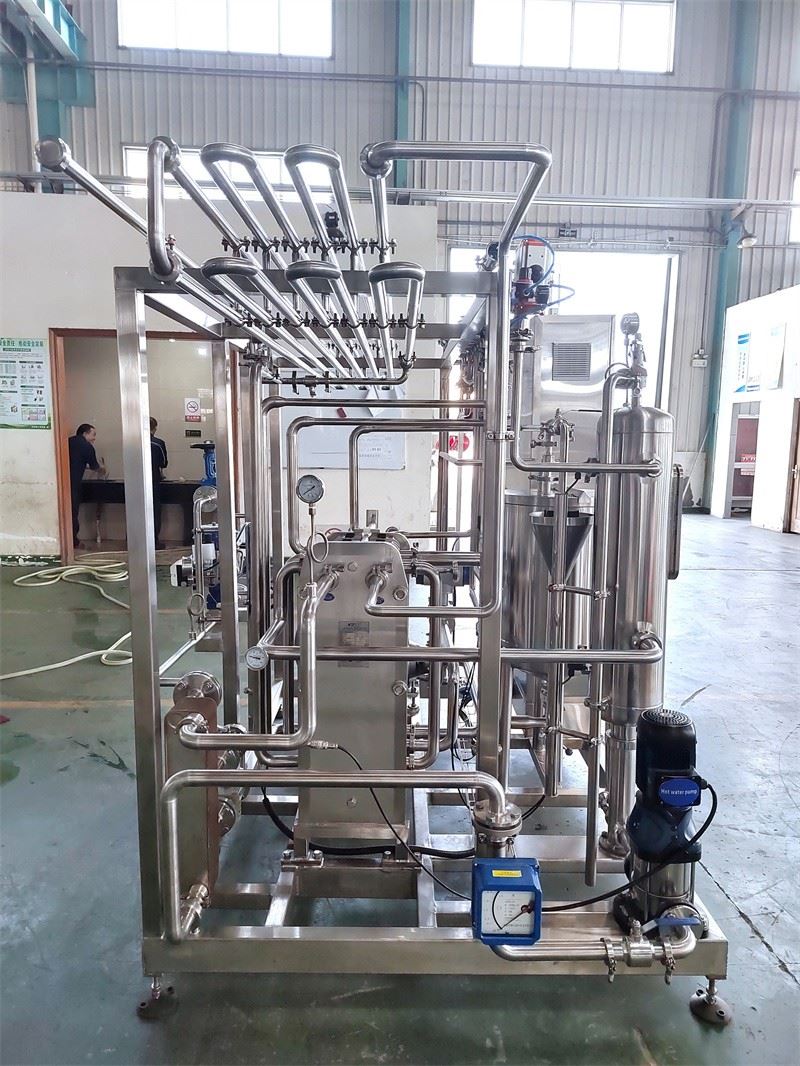

Shandong Chenma Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of 1000l-2000l/hour plate type sterilizer in China. With abundant experience, we are committed to providing high quality dairy and beverage processing equipment with competitive price. Welcome to buy premium 1000l-2000l/hour plate type sterilizer from our factory.
Standard Specifications:
- Capacity: 1000L–2000L/H
- Sterilization Type: Plate Pasteurizer / Plate UHT Sterilizer
- Material: Food-grade SUS304 stainless steel (SUS316L optional)
- Heat Exchanger: Sanitary plate heat exchanger
- Heating Medium: Hot water or steam
- Control System: PLC automatic control with digital temperature recorder
- Temperature Accuracy: ±1°C
- Heat Recovery Efficiency: Up to 90%
- Cleaning System: CIP compatible
- Power Supply: 220V / 380V / 415V / 440V / 480V, 50/60Hz (Customizable)
Pasteurization Process
5°C → 65°C (Homogenization) → 85–95°C (15–30 seconds) → 5°C
Suitable for:
- Fresh milk
- Flavored milk
- Yogurt milk
- Juice
- Tea beverages
- Ice cream mix
UHT Sterilization Process
5°C → 65°C (Homogenization) → 137°C (3–5 seconds) → 5°C (Aseptic Filling) / 85–90°C (Hot Filling)
Suitable for:
- UHT milk
- Long-life milk
- Juice
- Plant-based beverages
- Dairy drinks
- Liquid foods
Main Components
- Sanitary Plate Heat Exchanger
- Product Balance Tank
- Hot Water Balance Tank
- Hot Water Circulation Pump
- Product Transfer Pump
- Hot Water Generator
- Automatic Electric Control Cabinet
- PLC with Digital Temperature Recorder
- Stainless Steel Piping, Valves, and Fittings
- Sensors and Instrumentation
Key Features
- Continuous and fully automatic sterilization process
- High heat recovery efficiency reduces energy consumption
- Rapid heating and cooling preserve product quality
- Precise temperature control ensures reliable sterilization
- Hygienic sanitary design compliant with food processing standards
- Easy operation, cleaning, and maintenance
- Compatible with automatic CIP cleaning systems
- Can be integrated with homogenizers, separators, deaerators, and aseptic filling machines
- Suitable for complete dairy and beverage processing lines
Applications
- Fresh milk processing
- Pasteurized milk production
- UHT milk production
- Flavored milk
- Yogurt drink processing
- Fruit juice production
- Tea and coffee beverages
- Ice cream mix preparation
- Plant-based beverages
- Liquid food and beverage processing
Advantages
- High heat transfer efficiency with up to 90% energy recovery
- Continuous production for higher processing capacity
- Extends product shelf life while maintaining flavor and nutritional value
- Compact design with low operating costs
- Fully customizable according to production capacity and processing requirements
- Available for capacities from 500L/H to 20T/H to meet various production needs.
