Shandong Chenma Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of 5000l yogurt fermentation tank in China. With abundant experience, we are committed to providing high quality dairy and beverage processing equipment with competitive price. Welcome to buy premium 5000l yogurt fermentation tank from our factory.

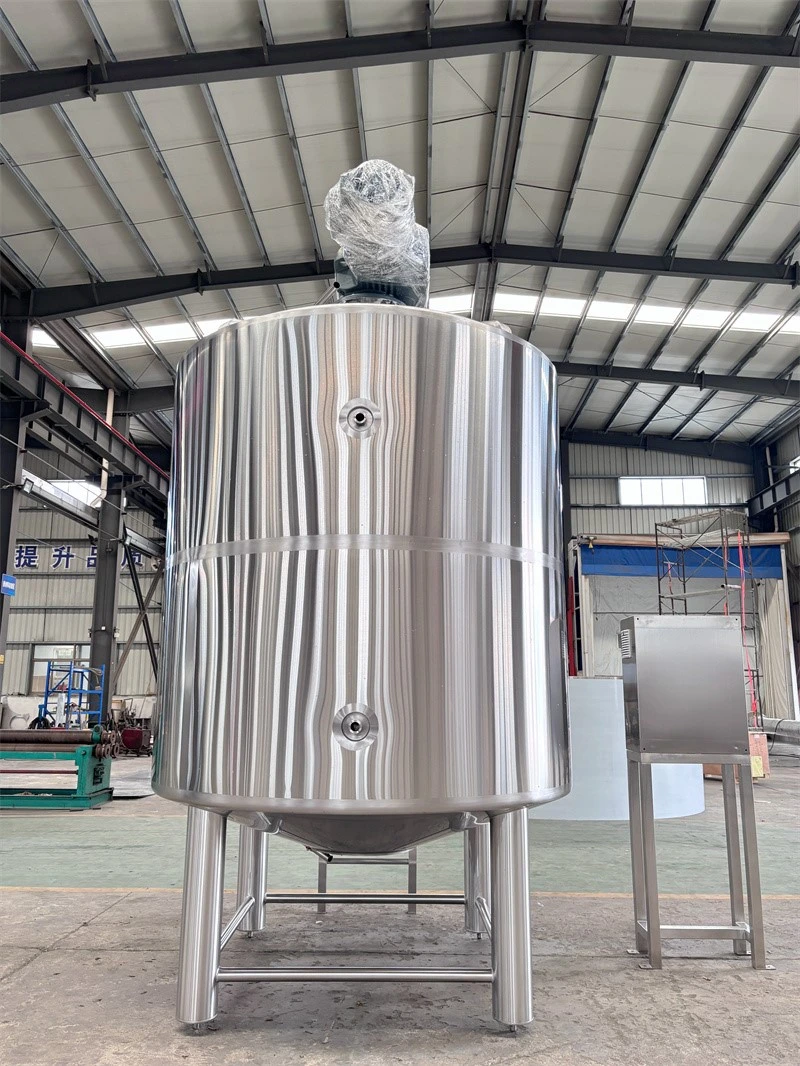

Specification list for 5000L Yogurt Fermentation Tank:
1.Sanitary Stainless steel,inside for the tank will be 2B polish, inner body with stainless steel 316L and outside with stainless steel 304;
2.Inner body diameter is 1800mm, thickness is 4mm, material is stainless steel 316L;
3.Cylinder height:3812mm;
4.Upper head: diameter:1800mm, thickness 4mm, material: stainless steel316L, conical head, taper angle is 150°; Lower head: diameter: 1800mm,thickness 4mm, material:stainless steel 316L, conical head, taper angle is 140°;
5.Outer cladding: Diameter2000mm, material: stainless steel 304; thickness is 2mm,Bottom outer cladding:conical bottom, thickness is 2mm, material:stainless steel304;
6.Material of parts in contact with the product: SS316L
7.Surface brushed, welding line polish sanding light belt;
8.Effective capacity:5,000L, total capacity: 5,960L;
9.Diameter is 2000mm, height is 3812mm;
10.Conical top and conical bottom;
11.4''Sterile breathing valve ;

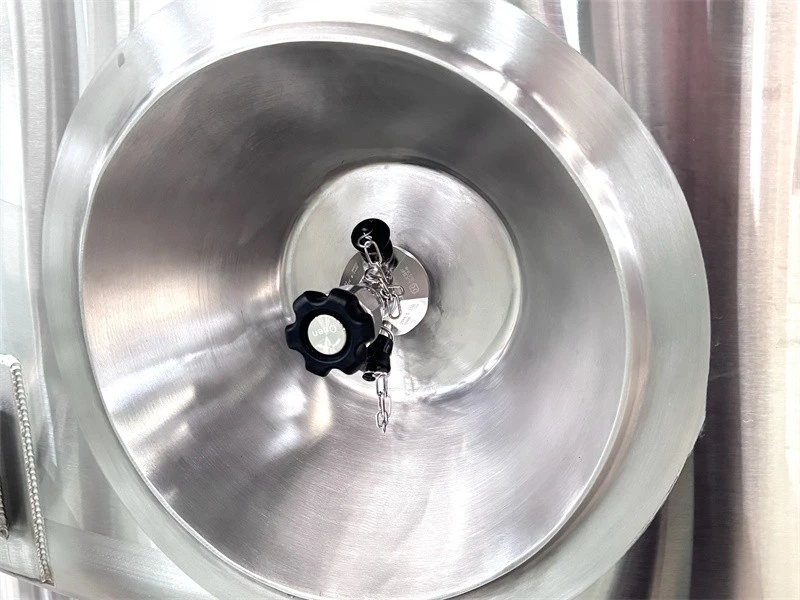

12.1.5"sterile sample valve, material is stainless steel 316L;
13.2" discharge outlet assembly;
14.2" material inlet;

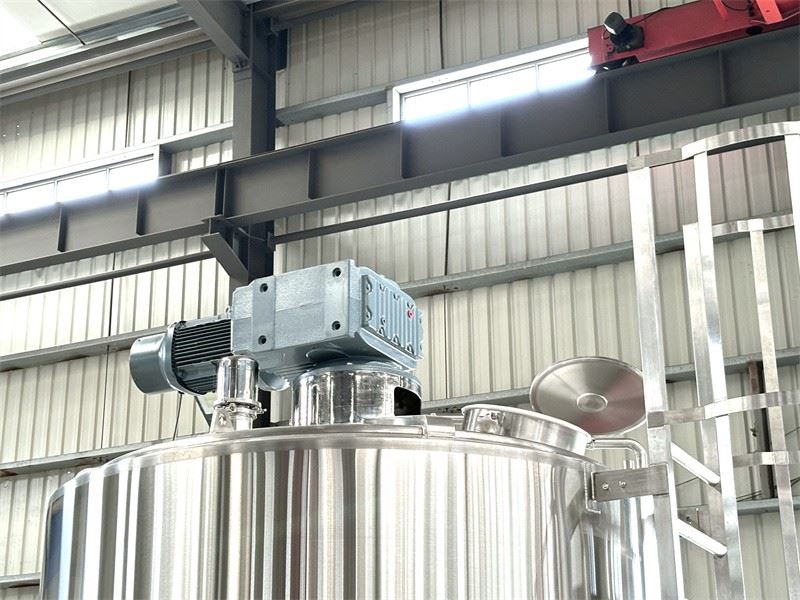

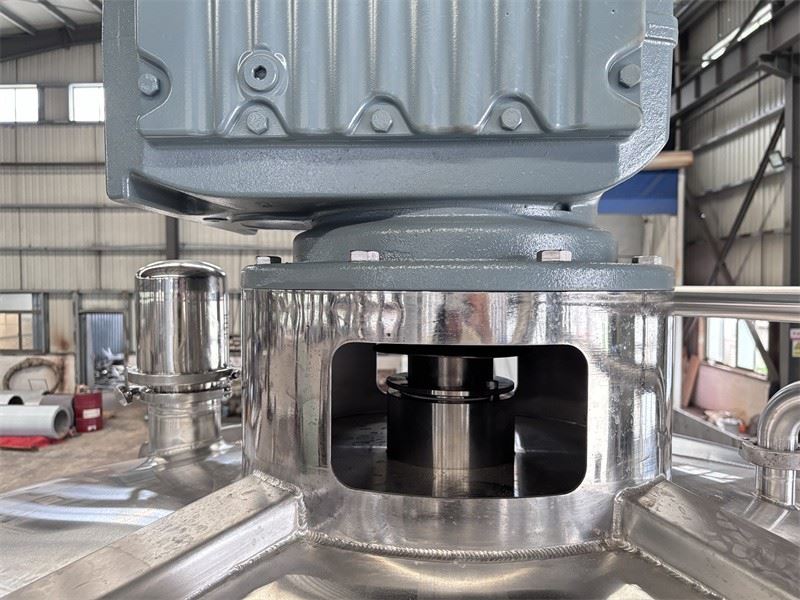

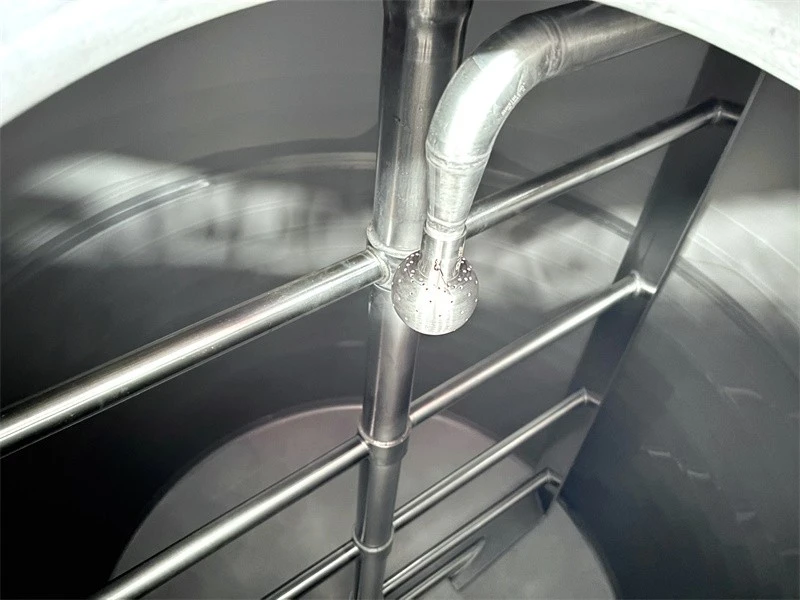

15.Top frame type agitator system: stirring power is 7.5KW , 29rpm, variable frequency, material is stainless steel 316L, and aigtator motor brand is SEW;
16.PU insulation, thickness: 100mm;
17.Fully welded cladding;
18.Welding method: TIG welding;
19.There are 2pcs CIP spray ball;
20.Bimetallic thermometer;
21.With ladder for the tank, material: stainless steel 304;
22.With coil pipe for heating/cooling, heating exchange are is 5.3m2, thickness is 3mm,volume is 159L, material is stainless steel 304;
23.Temperature sensor, material:stainless steel 316L, quantity: 1 set, brand: IFM;
24.Liquid level switch, material:stainless steel 316L, quantity: 1 set, brand: IFM;
25.Liquid level differential pressure sensor, material: stainless steel 316L, quantity: 1 set, brand: IFM;
26.Stainless steel legs with adjusting bolt,with bigger and thicker base plate, with screw assembly to adjust leg height;
27.Complete with associated valves and fittings;
Key Features
- Designed for heating, fermentation, cooling, and storage in one tank
- Precise temperature control ensures stable yogurt fermentation
- Food-grade stainless steel construction for hygienic production
- High-efficiency jacket provides fast heating and cooling
- Thick polyurethane insulation minimizes heat loss and saves energy
- Gentle agitation maintains uniform temperature and product consistency
- Integrated CIP cleaning system for easy and hygienic maintenance
- PLC automation available for fully automatic fermentation processes
- Customizable design to meet different production capacities and process requirements
Applications
- Set yogurt production
- Stirred yogurt production
- Greek yogurt processing
- Fermented milk beverages
- Probiotic dairy products
- Cream fermentation
- Dairy processing plants
- Beverage and liquid food processing facilities
Optional Configurations

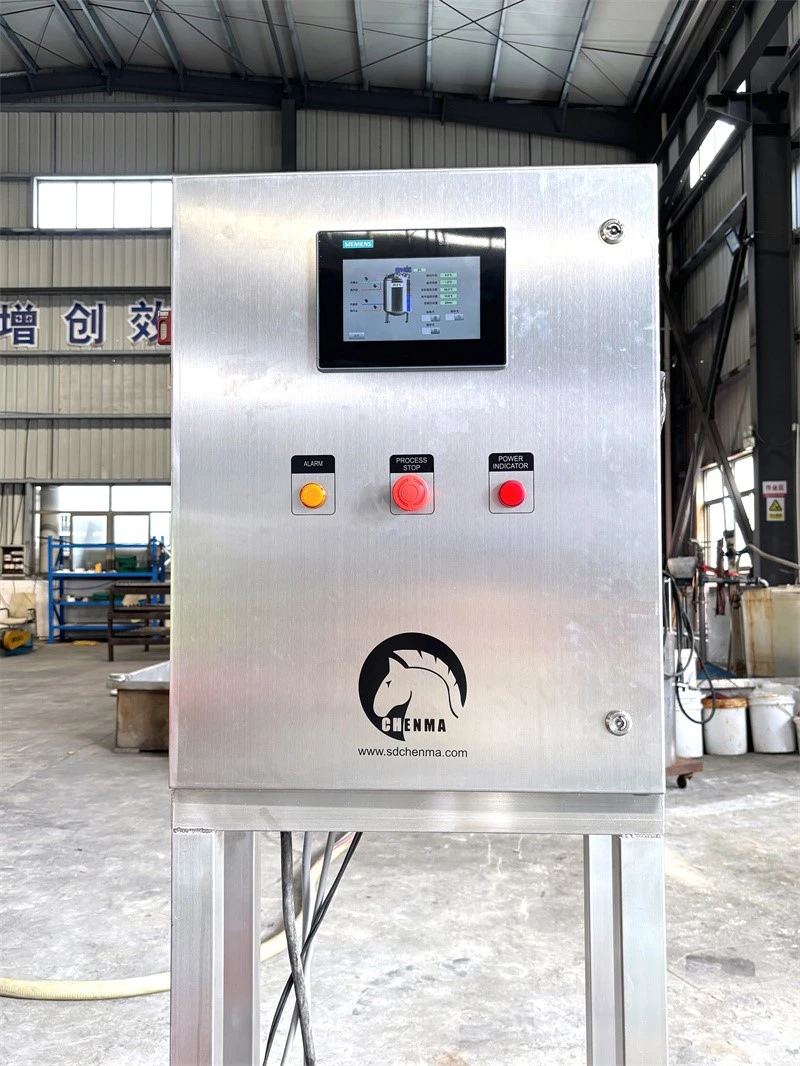

- PLC touchscreen with automatic fermentation program
- Automatic heating, cooling, and temperature recording
- Load cells for weighing
- High-shear homogenizer
- Plate heat exchanger connection
- Milk transfer pump
- Stainless steel platform and ladder
- SS316L stainless steel construction
- Customized inlet, outlet, and pipeline connections
Advantages
- Combines pasteurization, fermentation, cooling, and storage in one system
- Produces consistent, high-quality yogurt with precise temperature control
- Hygienic design compliant with international dairy processing standards
- Energy-efficient operation with excellent thermal insulation
- Easy to clean, operate, and maintain
- Suitable for integration into fully automated yogurt production lines
- Available in customized capacities ranging from 100L to 20,000L to meet different production needs.
