Shandong Chenma Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of 10000l dairy fermentation tank in China. With abundant experience, we are committed to providing high quality dairy and beverage processing equipment with competitive price. Welcome to buy premium 10000l dairy fermentation tank from our factory.
Standard Specifications:
- Capacity: 6,000 Liters (6 m³)
- Tank Type: Vertical Jacketed Milk Fermentation Tank
- Material: Food-grade SUS304 stainless steel (SUS316L optional)
- Tank Structure: Three-layer construction (Inner Tank + Heating/Cooling Jacket + Insulation)
- Heating Method: Electric heating, steam heating, or hot water heating
- Cooling Method: Chilled water or glycol cooling
- Fermentation Temperature: 35–45°C (Adjustable)
- Pasteurization Temperature: Up to 95°C (Optional)
- Insulation: 80–100 mm high-density polyurethane foam

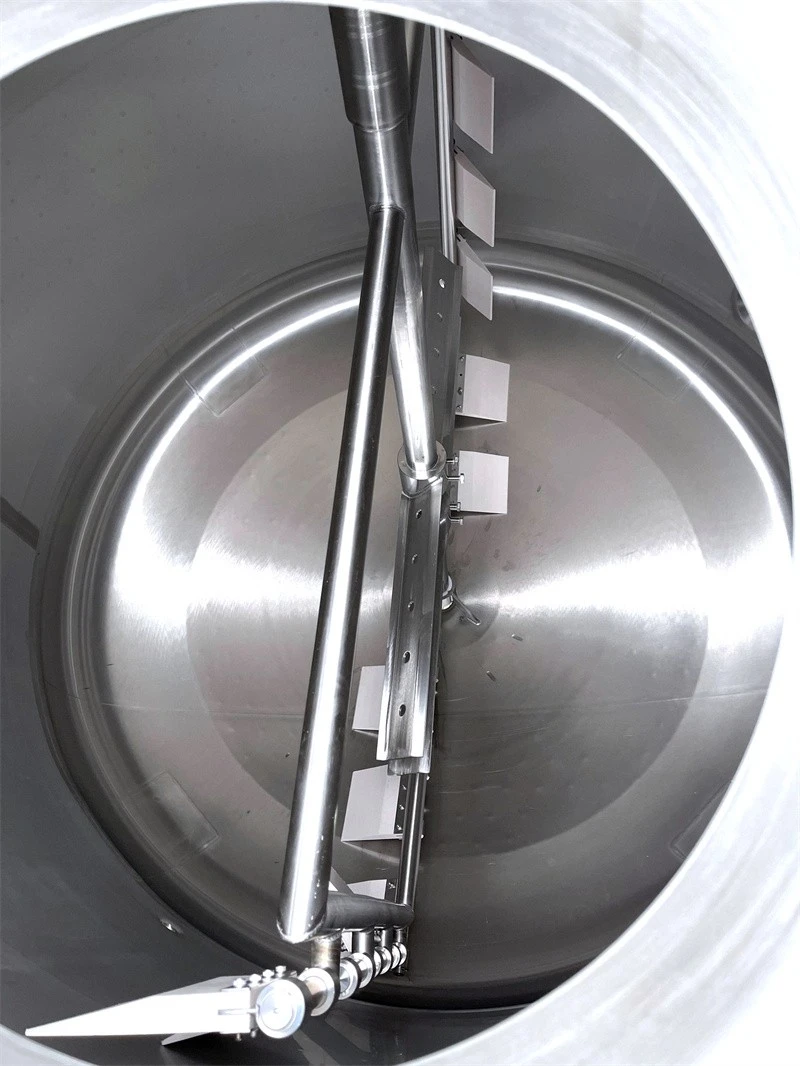

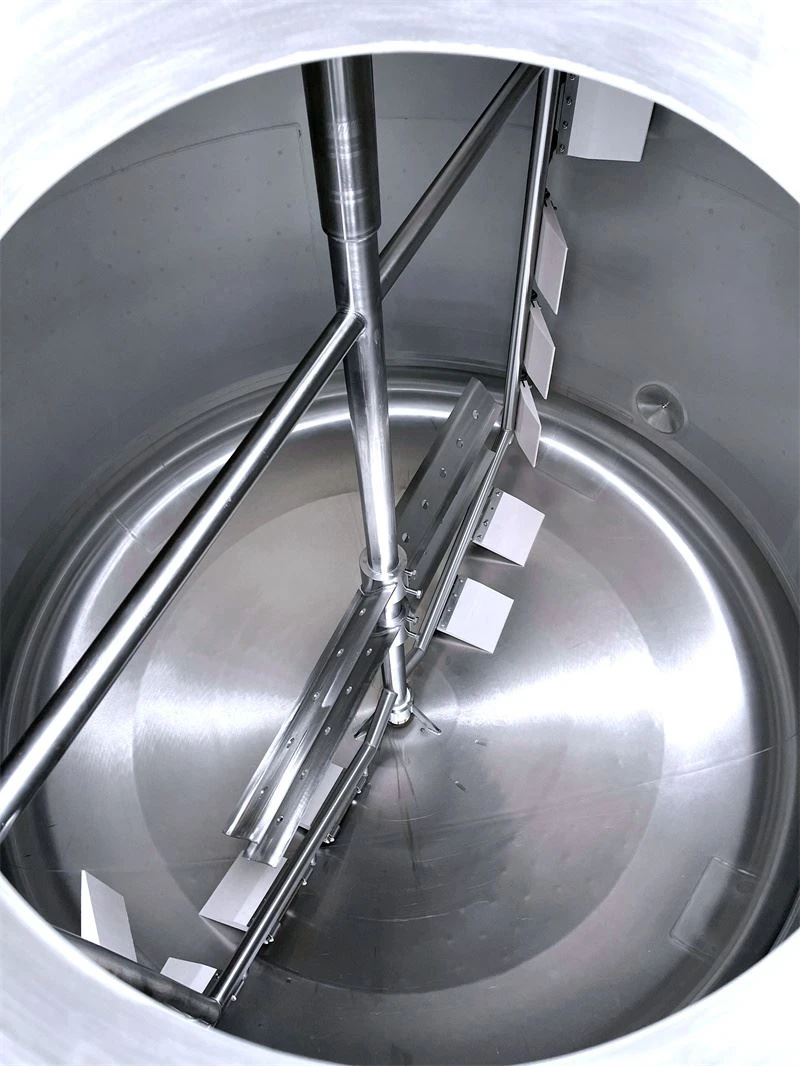

- Agitator: Low-speed sanitary agitator with optional variable frequency drive (VFD)
- Motor: High-efficiency geared motor
- Temperature Sensor: PT100 high-precision temperature sensor
- Temperature Control: PLC touchscreen or digital automatic controller
- Cleaning System: Rotary CIP spray ball
- Manhole: Top sanitary manhole with inspection cover
- Outlet: Bottom sanitary butterfly valve
- Surface Finish: Interior mirror polished (Ra ≤ 0.4 μm); exterior satin or mirror polished
- Support Structure: Stainless steel adjustable legs or skirt support
- Power Supply: 220V / 380V / 415V / 440V / 480V, 50/60Hz (Customizable)
Key Features
- Designed for heating, pasteurization, fermentation, cooling, and storage in one tank
- Precise temperature control ensures stable fermentation conditions
- Food-grade stainless steel construction for hygienic dairy processing
- High-efficiency jacket provides rapid heating and cooling
- Thick polyurethane insulation minimizes heat loss and improves energy efficiency
- Gentle agitation ensures uniform temperature and product consistency
- Built-in CIP cleaning system for fast and hygienic maintenance
- PLC automation available for fully automatic fermentation control
- Customizable design to meet various production capacities and process requirements
Applications
- Yogurt production
- Cultured milk processing
- Kefir production
- Probiotic dairy beverages
- Sour cream fermentation
- Starter culture preparation
- Dairy processing plants
- Beverage and liquid food manufacturing
Optional Configurations
- PLC touchscreen with automatic fermentation program
- Automatic heating, cooling, and temperature recording
- Variable Frequency Drive (VFD) agitator
- High-shear homogenizer
- Plate heat exchanger connection
- Milk transfer pump
- Load cells for weighing
- Sampling valve
- Flow meter
- Automatic CIP station
- Stainless steel platform and ladder
- SS316L stainless steel construction
- Customized inlet, outlet, and piping connections
Advantages
- Combines multiple processing functions into one compact system
- Ensures consistent fermentation quality with accurate temperature control
- Hygienic design compliant with international dairy processing standards
- Energy-efficient operation with excellent thermal insulation
- Easy to clean, operate, and maintain
- Ideal for medium- and large-scale dairy processing plants
- Available in capacities from 100L to 20,000L to suit different production requirements.
