Shandong Chenma Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of 200l manual cip system in China. With abundant experience, we are committed to providing high quality dairy and beverage processing equipment with competitive price. Welcome to buy premium 200l manual cip system from our factory.
Main Components:
1.Sterilize Tank: for clean water storage, used for pre-rinse, intermediate rinse and hot-water sanitization. Equipped with manhole, level observation port and drain outlet.
2.Alkali Tank: with electric heating elements and store alkaline detergent solution. Electric heating elements heat up detergent to enhance cleaning performance against fat and protein residues. Fitted with level sensor protection against dry-heating.
3.CIP Circulation Pump: deliver cleaning solution and hot water with required circulation pressure for closed-loop cleaning cycle.

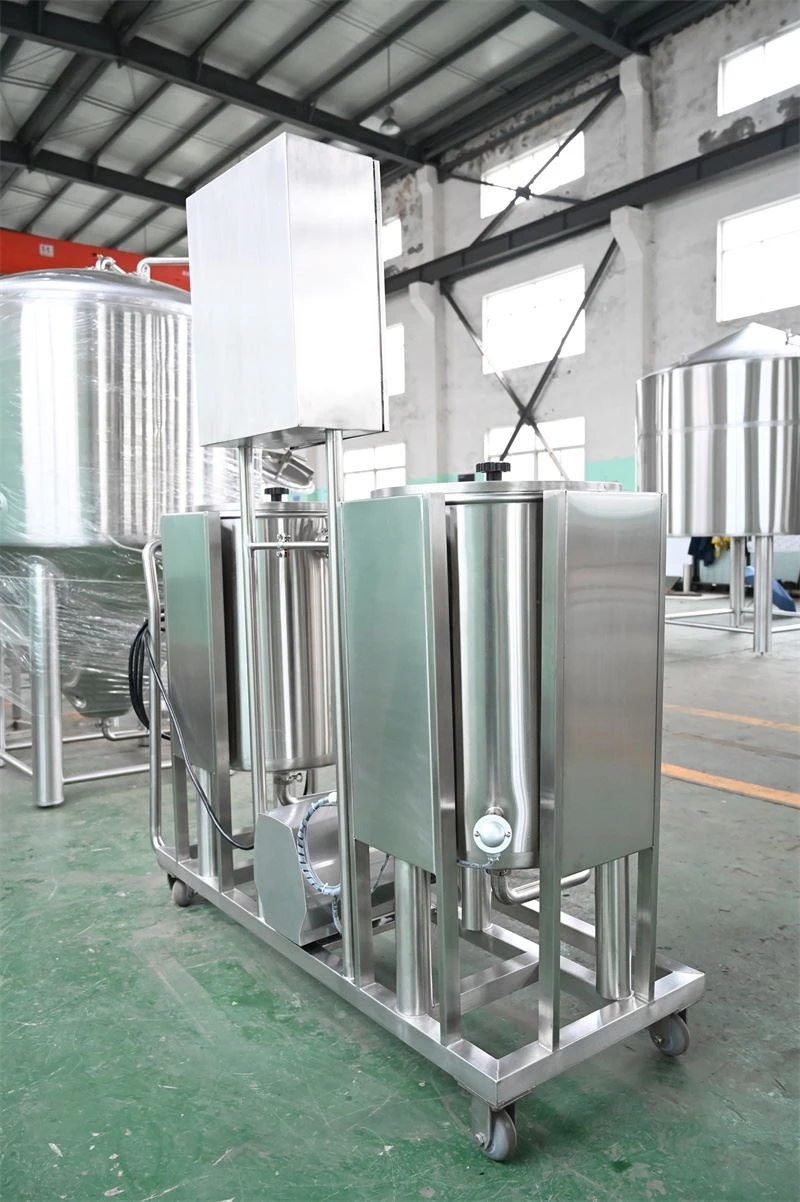

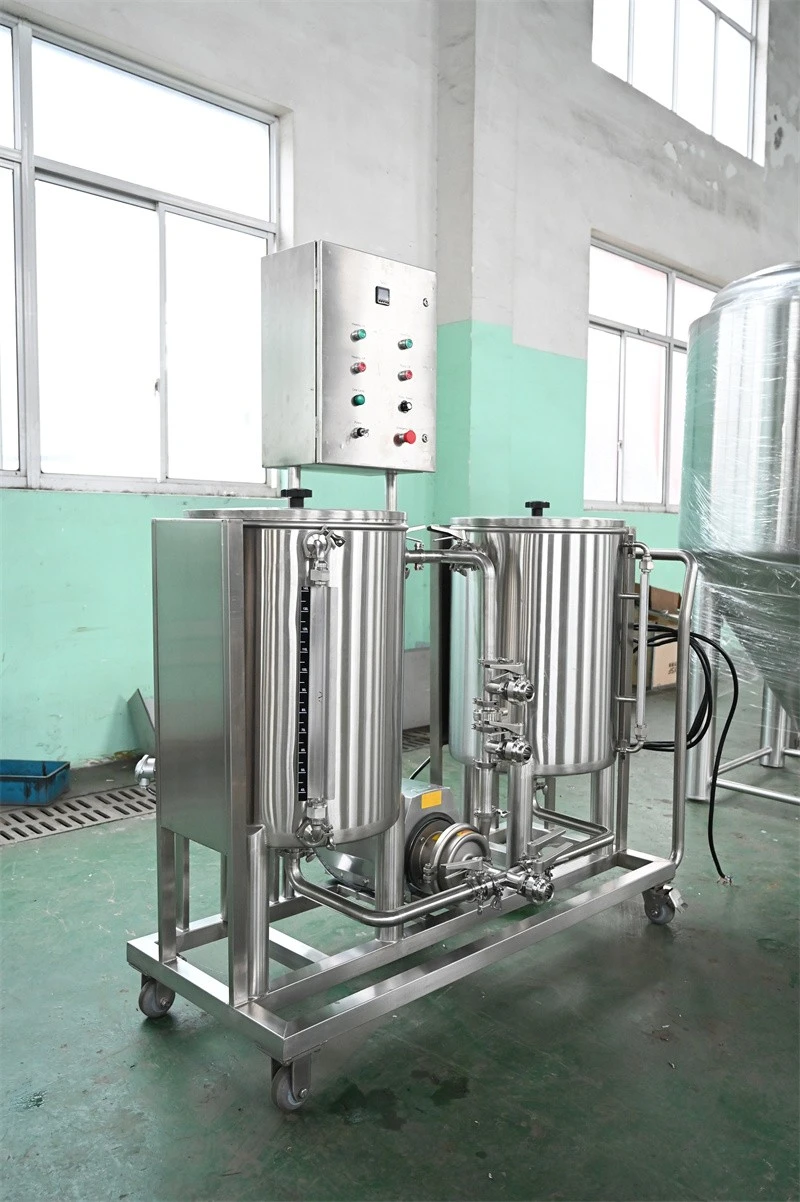

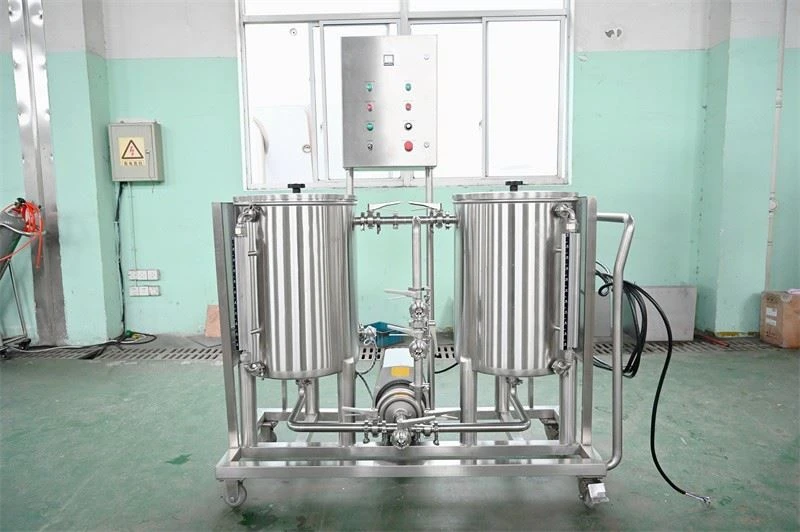

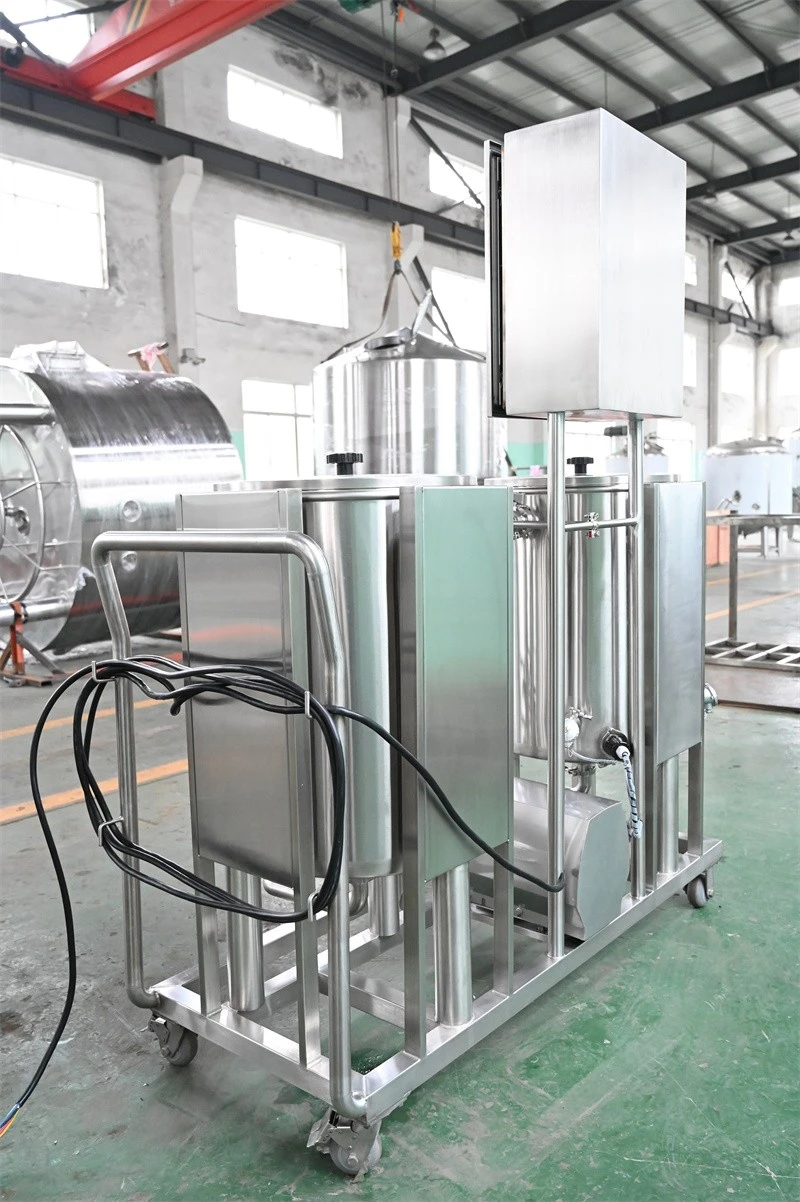

4.Mobile CIP Cart: all tanks, pump and valve manifolds are assembled on one mobile trolley. Easy to move to connect different processing machines for cleaning.
5.Control Panel Central: control for pump start-stop and alkali-tank heating, Manual operation mode is standard.
6.Sanitary Pipeline & Valves: complete sanitary piping and tri-clamp valves for tank switching, solution feeding, return flow and waste drainage. Quick-disconnect design for easy inspection.
Working Cycle
Pre-rinse
Fresh water from sterilize tank flushes bulk residues out of processing equipment.
01
Alkali cleaning circulation
Alkali solution is heated by electric elements. Hot detergent circulates through target equipment to dissolve fat and protein contamination, solution can recirculate back to alkali tank for reuse.
02
Intermediate rinse
Fresh water washes away residual alkaline detergent.
03
Hot-water sanitization
Hot water circulates for thermal sanitizing.
04
Final rinse
Final clean water rinse, all waste liquid is drained off after cycles.
05
Features
1.Compact mobile cart design, flexible to serve multiple machines.
2.Electric heating for alkali tank, excellent cleaning effect for dairy fat & butter residues.
3.Dual-tank layout: separate tank for detergent and sanitizing water, avoid cross-contamination.
4.Product-contact parts in food-grade stainless steel; tri-clamp sanitary connections for easy disassembly & inspection.
5.Centralized control cabinet for pump and heating unit, user-friendly operation.
