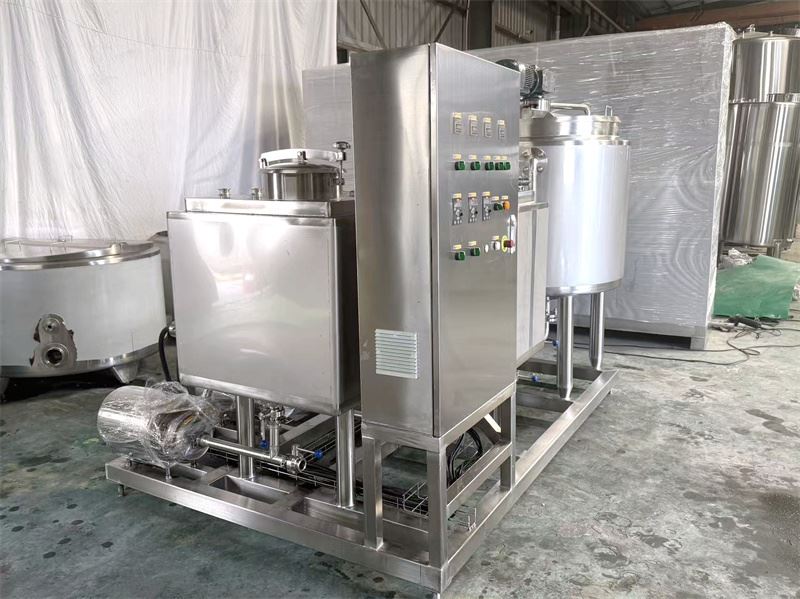

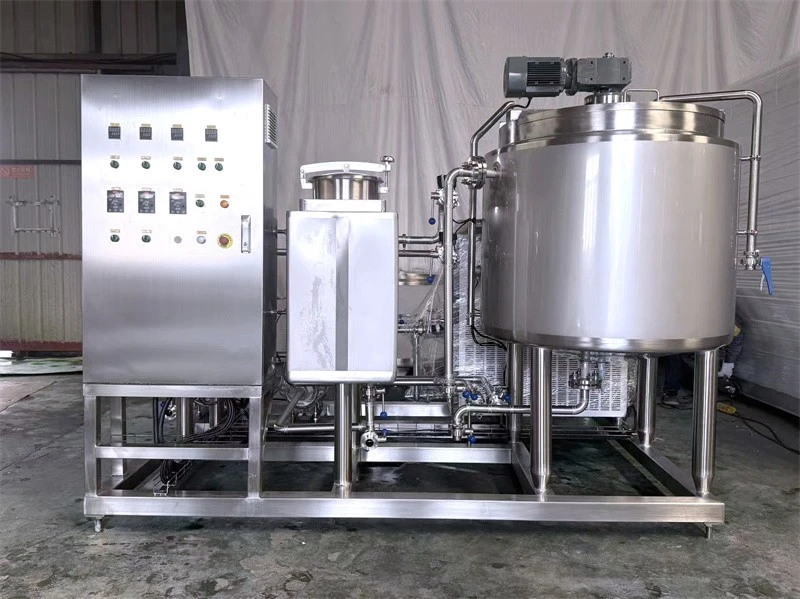

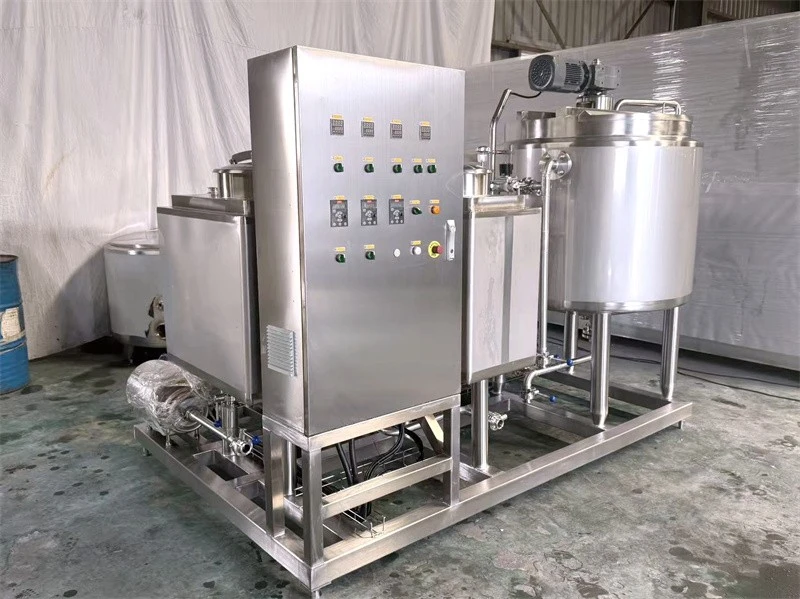

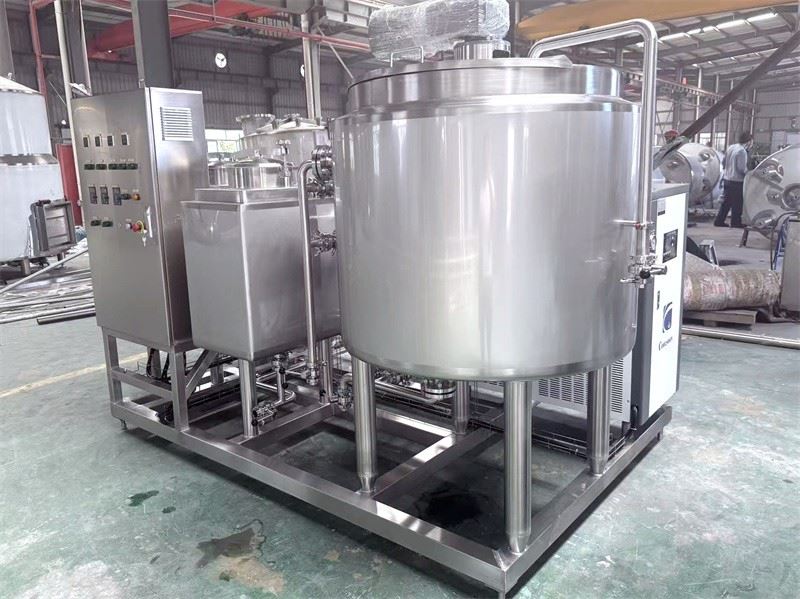

500L Integrated Milk Pasteurization Unit

Double-jacketed tank with thermal insulation layer. Inner and outer surface mirror polished; welds are ground flush without crevices. Equipped with top agitator motor and impeller to keep uniform milk temperature during processing. Built-in CIP spray-ball for in-place cleaning. Fitted with temperature sensor to monitor real-time product temperature. Ports include inlet, overflow, vent and bottom sanitary outlet. It undertakes the full dairy processing cycle: feeding, heating, pasteurization holding and cooling.

Insulated double-layer tank with internal electric heating elements. Hot water circulates to the jacket of 500L main tank to heat milk and maintain pasteurization temperature. Independent temperature sensor linked to control cabinet for automatic heating on/off. Closed hot-water circulation ensures stable temperature and high thermal efficiency.

Insulated tank for cooling-medium storage. Working together with refrigeration unit to produce low-temperature cooling water. After pasteurization, cold water circulates into main tank jacket to rapidly cool down hot dairy products and prevent bacteria re-growth. Separate temperature monitoring for cold-water temperature.

Provides cold energy for the 100L cold-water tank. It can cool water down to low temperature so that pasteurized milk can be quickly chilled to storage temperature around 4℃. Pre-piped on the skid base. Client only needs power supply and water connection for on-site commissioning.

Equipped with multiple digital temperature displays for product, hot-water tank and cold-water tank. Operation buttons, selector switches and emergency-stop button are installed on panel. It controls heating, agitation, hot-water circulation, cold-water circulation and refrigeration unit. Operators set pasteurization temperature and holding time. The unit runs heating-holding-cooling automatically. Over-temperature protection is integrated for safe operation.

All components are assembled on one stainless steel skid frame, fully pre-connected before delivery, easy for transport and installation. Sanitary centrifugal pumps for hot-water circulation, cold-water circulation and product transfer. All pipes and valves adopt tri-clamp sanitary connections, easy disassembly and CIP cleaning, no sanitary dead corners.
