Shandong Chenma Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of 100gallon semi-automatic cip cleaning system in China. With abundant experience, we are committed to providing high quality dairy and beverage processing equipment with competitive price. Welcome to buy premium 100gallon semi-automatic cip cleaning system from our factory.
Technical Specifications:

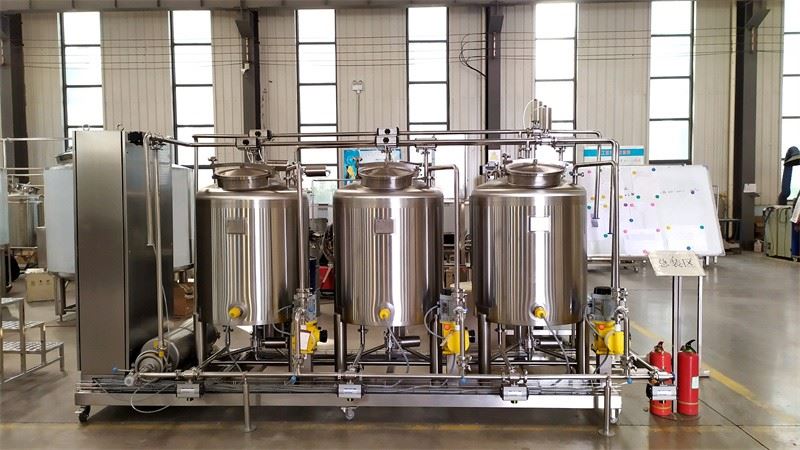

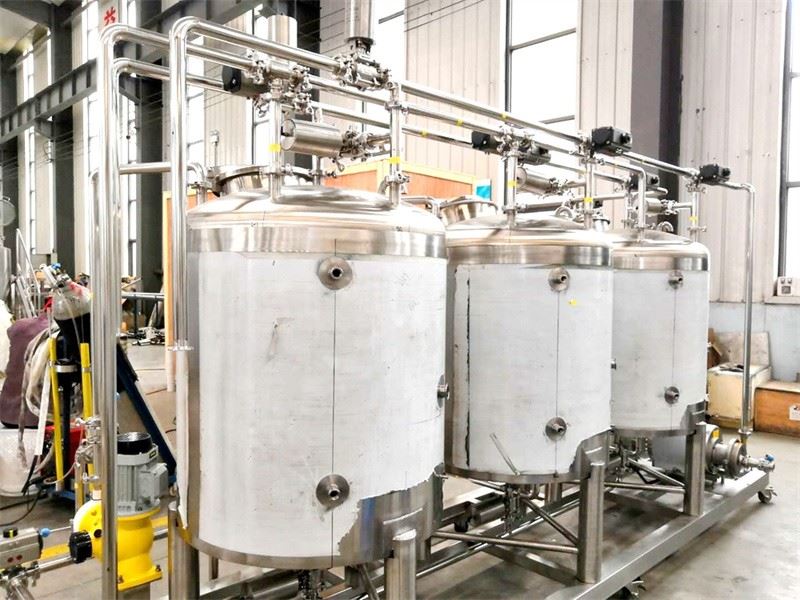

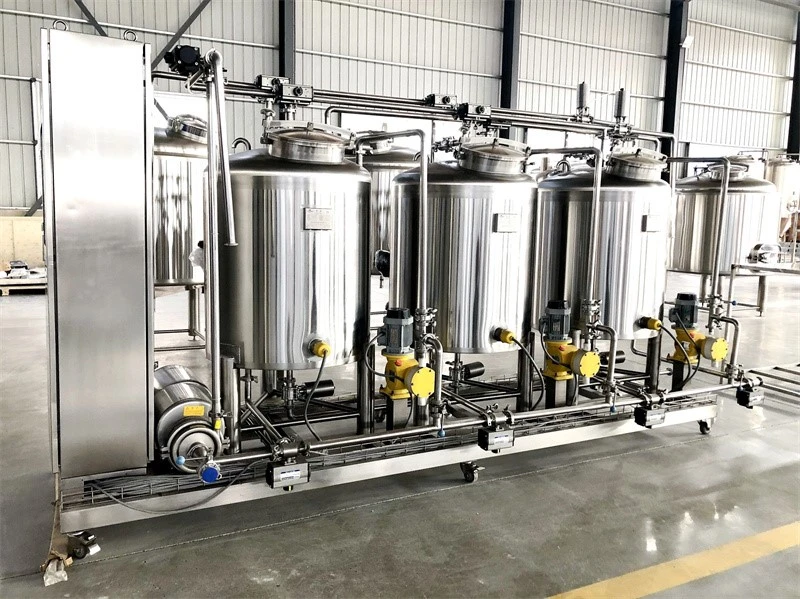

Equipment Name: 100 Gallon Stainless Steel CIP Cleaning System
CIP Type: Semi-Automatic CIP System
Total Capacity: 100 US Gallons (Approx. 380 L)
CIP Tank Quantity: 3 Tanks
Tank Function: Caustic Tank / Acid Tank / Hot Water or Rinse Water Tank
Tank Material: Food Grade SS304 Stainless Steel
Optional Material: SS316L
Tank Construction: Vertical cylindrical tank
Tank Surface: Internal 2B polished, sanitary finish
Internal Surface Roughness: Ra ≤ 0.8 μm
Tank Insulation: Optional, according to cleaning temperature requirements
CIP Tank
- Working Capacity: 100 US Gallons / 380 L
- Tank Quantity: 3
- Tank Design: Vertical sanitary stainless steel tank
- Heating: by plate heating exchanger
- Heating Temperature: Up to 85–90°C
- Temperature Sensor: PT100
- Level Control: Liquid level sensor
- Cleaning: CIP spray ball
CIP Circulation Pump
- Pump Type: Sanitary centrifugal CIP pump
- Pump Material: SS304 / SS316L
- Flow Rate: Approx. 5 m³/h
- Pump Head: Approx. 24m
- Connection: Tri-clamp sanitary connection or fread connection
Piping & Valves
- Pipe Material: SS304 / SS316L
- Pipe Design: Sanitary stainless steel piping
- Valve Type: Pneumatic sanitary butterfly valves
- Optional Valves: Pneumatic seat valves / diaphragm valves
- Control: Pneumatic automatic valve switching
- Drainage: Central sanitary drain system
Control System
- Control Mode: Semi-Automatic
- Control Panel: Stainless steel electrical control cabinet
- PLC: Siemens
- Touch Screen: 7–10 inch HMI
- Temperature Display: Digital real-time display
- Pump Control: Start/stop and frequency control
- Valve Control: Automatic sequence control
- Cleaning Programs: Programmable CIP cleaning recipes
- Safety: Emergency stop, overload protection, low-level protection and over-temperature protection
Typical CIP Cleaning Process
The system can be programmed for different cleaning recipes, for example:
Pre-Rinse → Caustic Cleaning → Intermediate Rinse → Acid Cleaning → Final Rinse → Drain
Typical operating parameters:
- Pre-rinse: 40–60°C
- Caustic Cleaning: 70–85°C
- Acid Cleaning: 50–70°C
- Final Rinse: Ambient or warm water
- Cleaning Time: 10–30 minutes per stage
- Caustic Concentration: Typically 1–3%
- Acid Concentration: Typically 0.5–2%
Main Applications:
Suitable for cleaning:
Milk Storage Tanks
Yogurt Fermentation Tanks
Beverage Mixing Tanks
Juice Processing Equipment
Wine & Brewing Equipment
Filling Machines
Pasteurizers
Heat Exchangers
Sanitary Process Piping.
